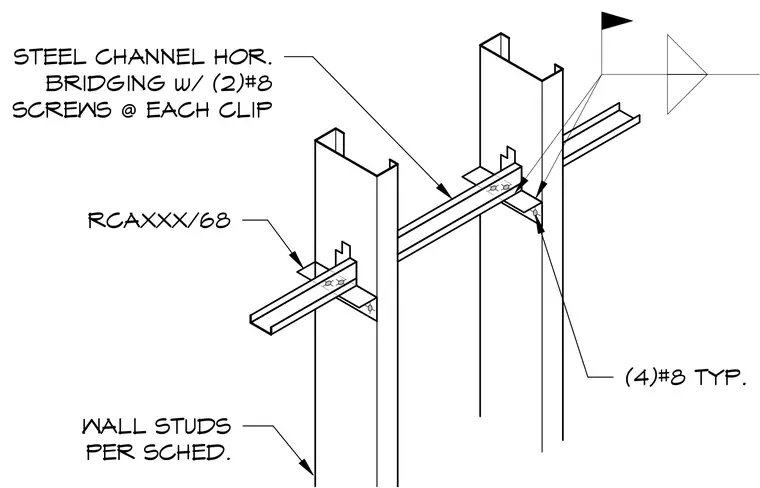

Cold-formed steel wall studs receive horizontal steel channel bridging secured by four number 8 screws at each clip. The bridging channels span between the vertical studs to provide lateral bracing and prevent web distortion or buckling. Two number 8 screws fasten each clip connection between the bridging member and the stud web. Wall stud sizes are determined per the structural schedule.
(4)#8 TYP. STEEL CHANNEL HOR. BRIDGING w/ (2)#8 SCREWS @ EACH CLIP WALL STUDS PER SCHED. RCAXXX/68
