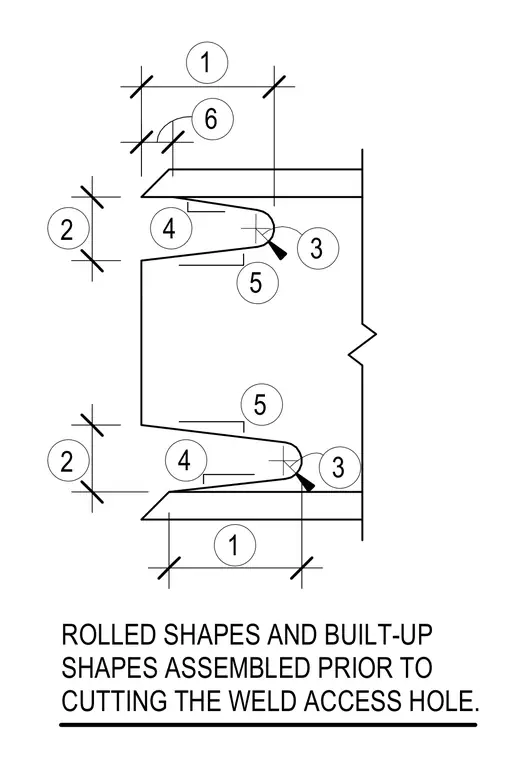

Rolled shapes and built-up shapes are assembled prior to cutting the weld access hole. The detail provides dimensional limits and clearances for the web cutouts and flange transitions. Weld access holes are positioned to facilitate full penetration welds on structural steel members.
ROLLED SHAPES AND BUILT-UP SHAPES ASSEMBLED PRIOR TO CUTTING THE WELD ACCESS HOLE. 6 2 1 2 1/4" 4 5/8" 9 5/8" 1 4 7/8" 2 4 5 3 4 5 3 9 5/8"
