Structural · S-YSS68

Moveable Lifeguard Chair

Materials

Elements

About this detail

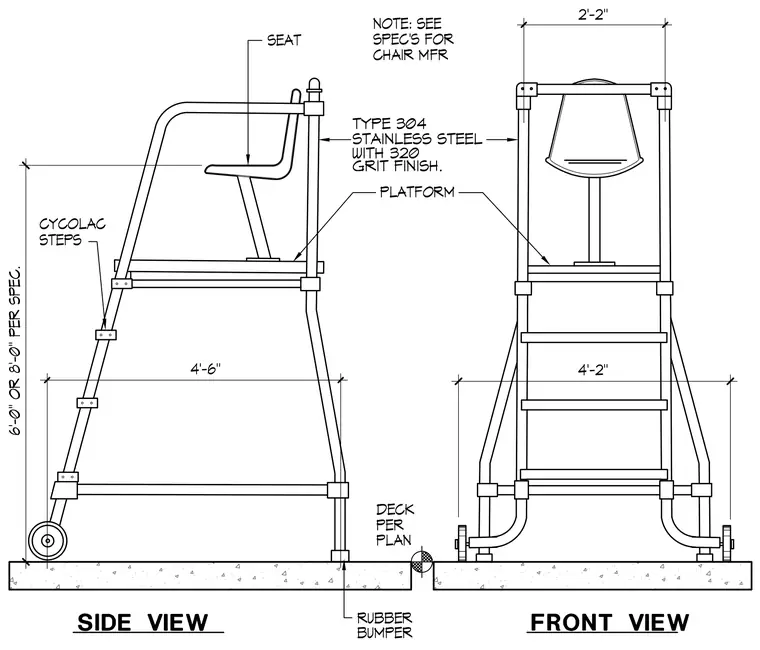

A movable lifeguard chair is constructed from Type 304 stainless steel tubing with a 320 grit finish, supported on a deck per plan with rubber bumpers at the base. The structural frame includes an elevated platform, integrated Cycolac steps with a grip finish, and wheels at the rear for relocation. A seat is mounted on the platform, with chair manufacturer details specified separately. Overall dimensions include a platform height of four feet two inches, a stair width of two feet two inches, and variable overall heights of four feet six inches, six feet zero inches, or eight feet zero inches per specification.
