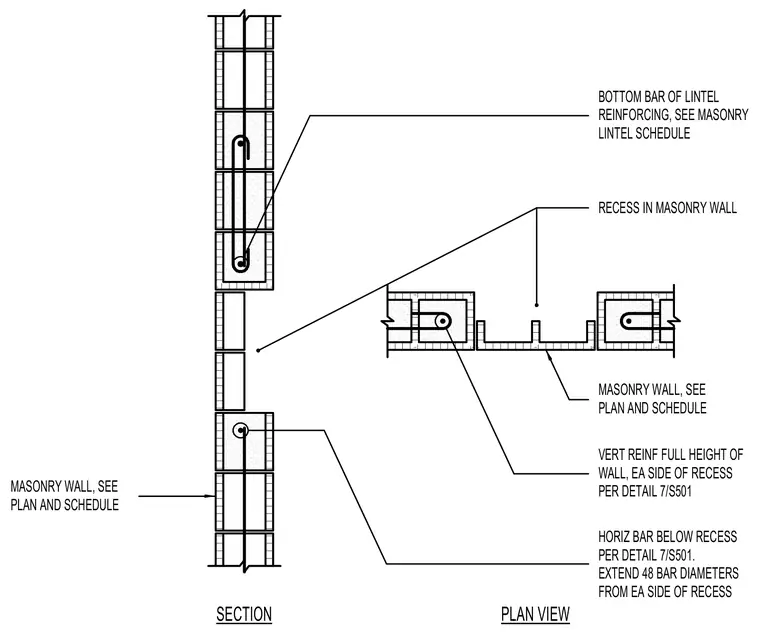

Typical reinforcement configuration at a wall recess in concrete masonry units. Vertical reinforcing bars run the full height of the wall on each side of the recess as specified per detail 7/S501. Horizontal bars located below the recess extend forty-eight bar diameters past each side of the recess. Lintels above incorporate bottom reinforcing bars sized per the masonry lintel schedule.
SECTION PLAN VIEW BOTTOM BAR OF LINTEL REINFORCING, SEE MASONRY LINTEL SCHEDULE RECESS IN MASONRY WALL VERT REINF FULL HEIGHT OF WALL, EA SIDE OF RECESS PER DETAIL 7/S501 HORIZ BAR BELOW RECESS EXTEND 48 BAR DIAMETERS FROM EA SIDE OF RECESS MASONRY WALL, SEE PLAN AND SCHEDULE MASONRY WALL, SEE PLAN AND SCHEDULE PER DETAIL 7/S501.
