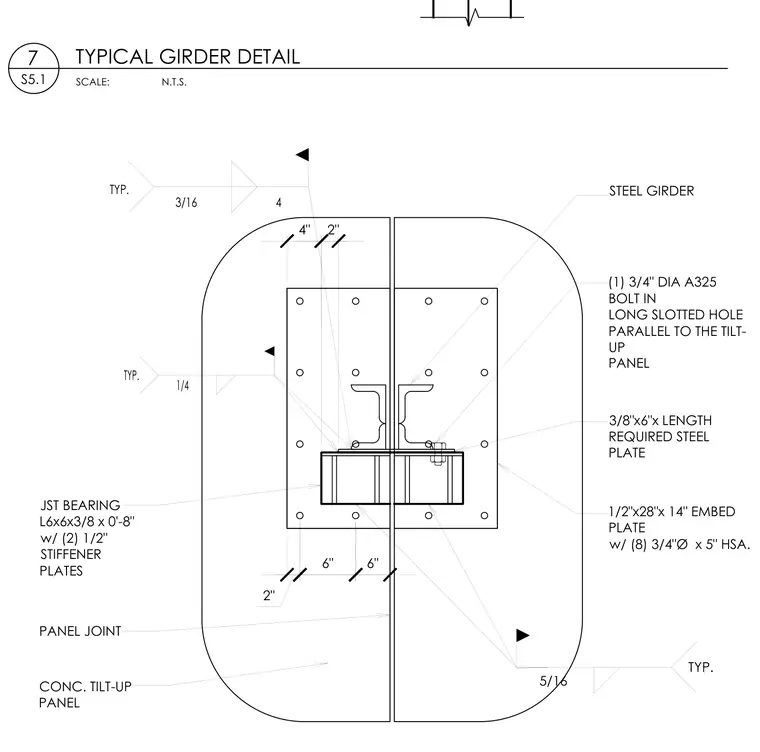

A steel girder bears on a structural angle with stiffener plates attached to a concrete tilt-up panel. The assembly utilizes a 1/2-inch by 28-inch by 14-inch embed plate anchored by eight 3/4-inch diameter by 5-inch heavy stud anchors embedded in the concrete panel. A 3/8-inch by 6-inch steel plate is welded to the embed plate with fillet welds. One 3/4-inch diameter A325 bolt is installed in a long slotted hole parallel to the tilt-up panel to allow for lateral movement across the panel joint. A joist bearing angle measuring 6x6x3/8 by 0'-8" with two 1/2-inch stiffener plates supports the structural elements.
SCALE: 7 S5.1 TYPICAL GIRDER DETAIL N.T.S. (1) 3/4" DIA A325 BOLT IN LONG SLOTTED HOLE PARALLEL TO THE TILT- UP PANEL CONC. TILT-UP PANEL JST BEARING L6x6x3/8 x 0'-8" w/ (2) 1/2" STIFFENER PLATES PANEL JOINT 1/2"x28"x 14" EMBED PLATE w/ (8) 3/4"Ø x 5" HSA. 3/8"x6"x LENGTH REQUIRED STEEL PLATE TYP. 5/16 TYP. 3/16 4 STEEL GIRDER 6" 2" 6" TYP. 1/4 4" 2"
