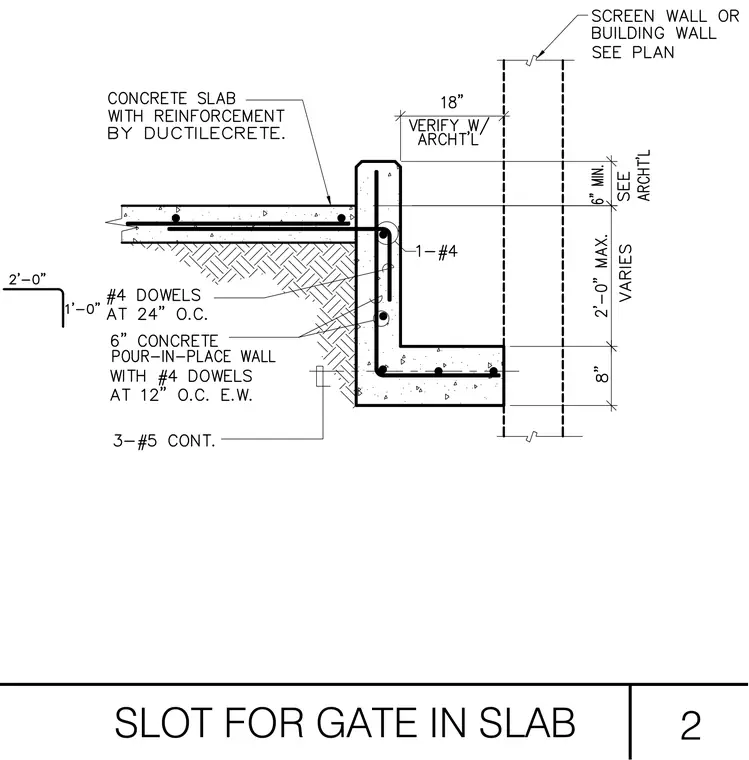

A concrete slab with reinforcement by Ductilcrete bears adjacent to a six-inch concrete pour-in-place wall with number four dowels at twelve inches on center each way. The gate slot is formed by an eighteen-inch vertical curb section with number four dowels at twenty-four inches on center extending from the slab. Three continuous number five reinforcing bars run longitudinally through the base of the curb. A screen wall or building wall aligns above as sized per architectural plans.
