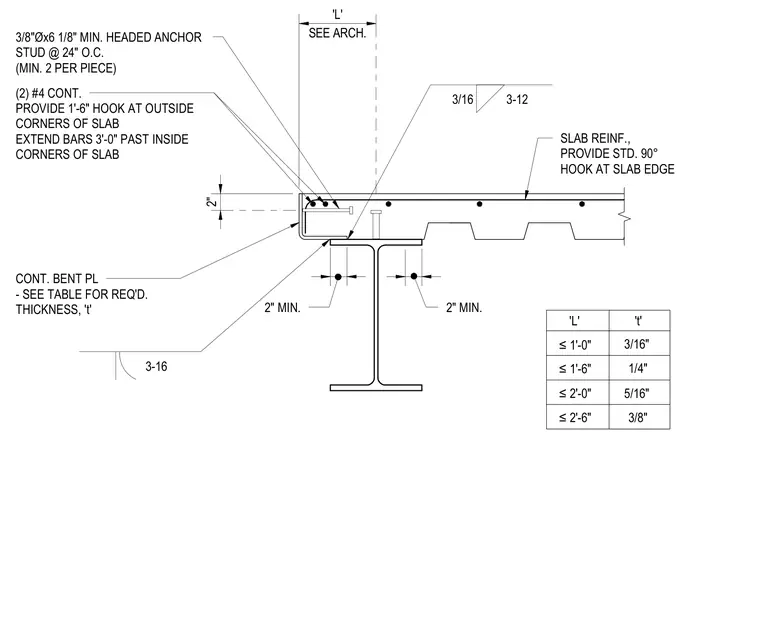

A concrete slab edge condition bears on a steel beam with a continuous bent plate edge form. The slab is reinforced with continuous number four rebar featuring standard ninety-degree hooks at the slab edge, requiring one-foot-six-inch hooks at outside corners and three-foot extensions past inside corners. Three-eighths-inch diameter by six-and-one-eighth-inch minimum headed anchor studs are spaced at twenty-four inches on center with a minimum of two per piece. A sizing table relates plate dimension 'L' up to two feet six inches to required plate thickness 't' ranging from three-sixteenths to three-eighths of an inch. Fillet welds secure the assembly with specified sizes.
SLAB REINF., PROVIDE STD. 90° HOOK AT SLAB EDGE 3/8"Øx6 1/8" MIN. HEADED ANCHOR STUD @ 24" O.C. (MIN. 2 PER PIECE) 3/16 3-12 2" (2) #4 CONT. PROVIDE 1'-6" HOOK AT OUTSIDE CORNERS OF SLAB EXTEND BARS 3'-0" PAST INSIDE CORNERS OF SLAB CONT. BENT PL - SEE TABLE FOR REQ'D. THICKNESS, 't' 'L' 't' ≤1'-0" ≤1'-6" ≤2'-0" 3/16" 1/4" 5/16" SEE ARCH. 'L' 3-16 2" MIN. 2" MIN. ≤2'-6" 3/8"
