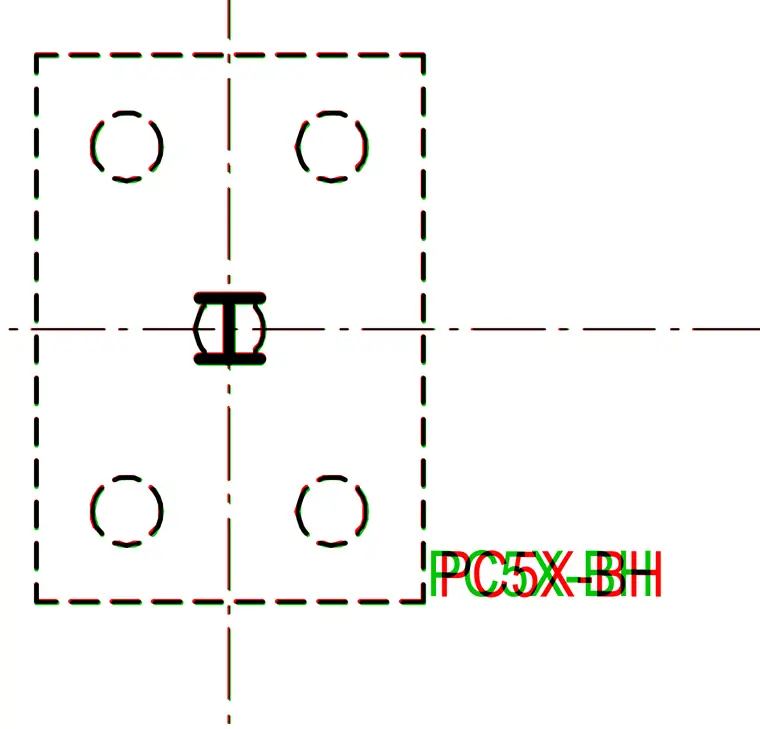

Structural connection detail designated PC5X-BH featuring a steel profile aligned with intersecting centerlines and surrounded by a rectangular bolt pattern of four anchor bolts or fastener holes. The dashed rectangular boundary outlines the plate or connection footprint relative to the central structural shape.
