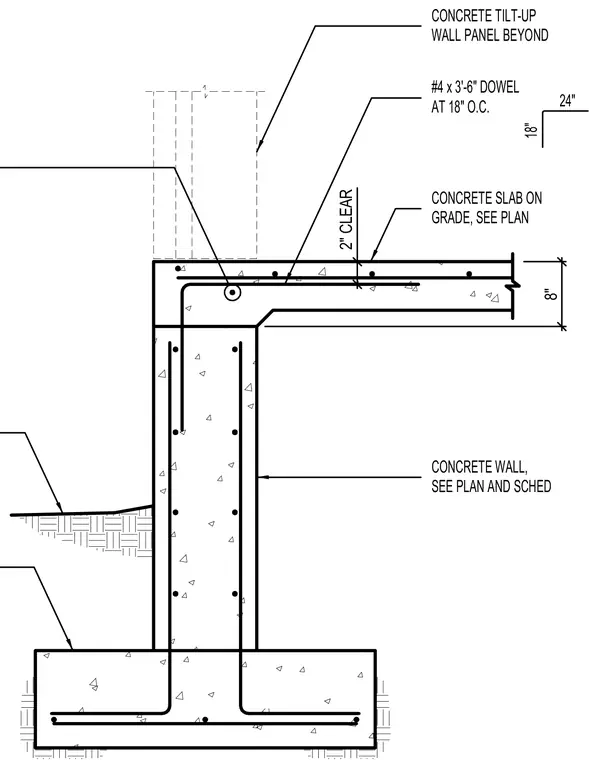

An eight-inch concrete slab on grade bears on top of a concrete wall sized per plan and schedule, positioned over a concrete footing. Number four dowels measuring three feet six inches long tie the elements together at eighteen inches on center with two inches of clear cover. A concrete tilt-up wall panel is located beyond the foundation connection.
CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE TILT-UP WALL PANEL BEYOND 24" 18" #4 x 3'-6" DOWEL AT 18" O.C. CONCRETE WALL, SEE PLAN AND SCHED 8" 2" CLEAR
