New Shotcrete Wall Footing at Existing CMU Wall Outside Corner

Materials

Concrete Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

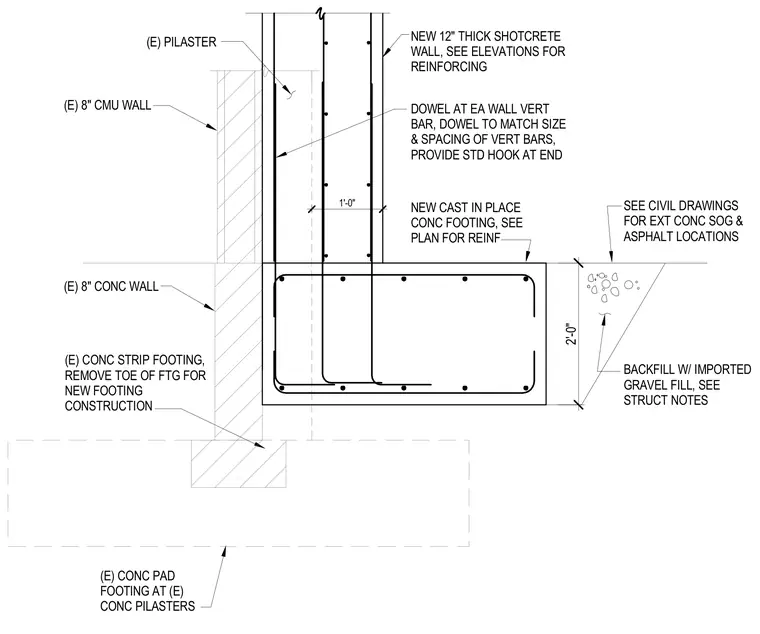

A new twelve-inch thick shotcrete wall and a new cast-in-place concrete footing bear against an existing concrete and CMU foundation wall. The existing concrete strip footing requires the removal of its toe to accommodate the new footing construction, which sits adjacent to an existing concrete pad footing at existing concrete pilasters. Dowels match the size and spacing of vertical bars at each wall vertical bar, featuring a standard hook at the end. Imported gravel fill backfill is placed against the exterior, with exterior slab-on-grade and asphalt locations coordinated per civil drawings.
