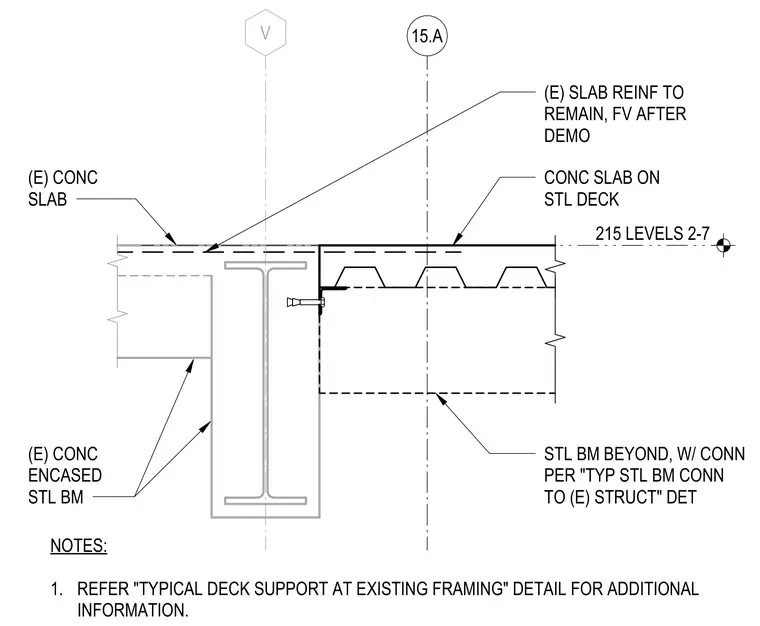

A concrete slab on steel deck bears adjacent to an existing concrete slab supported by a concrete-encased steel beam. Existing slab reinforcement remains and is field-verified after demolition. A steel beam beyond utilizes a connection detailed per typical steel beam connections to existing structure.
V 15.A CONC SLAB ON STL DECK (E) CONC SLAB (E) CONC ENCASED STL BM 215 LEVELS 2-7 STL BM BEYOND, W/ CONN PER "TYP STL BM CONN TO (E) STRUCT" DET (E) SLAB REINF TO REMAIN, FV AFTER DEMO NOTES: 1. REFER "TYPICAL DECK SUPPORT AT EXISTING FRAMING" DETAIL FOR ADDITIONAL INFORMATION.
