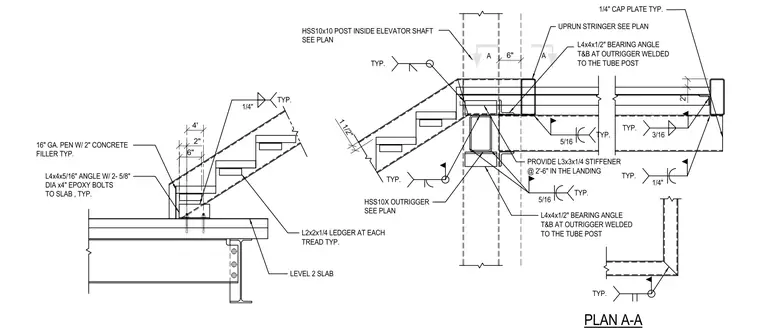

An HSS10x10 post inside the elevator shaft receives an HSS outrigger welded with top and bottom L4x4x1/2 angles. The stair stringer frames into the landing assembly, utilizing L2x2x1/4 ledgers at each tread and a 16-gauge pan filled with two inches of concrete. A base angle L4x4x5/16 anchors to the level 2 concrete slab using two five-eighths inch diameter by four-inch epoxy bolts. Additional L3x3x1/4 stiffeners are provided at two-foot six-inch intervals in the landing, and a one-quarter inch cap plate closes the tube post.
6" 2" 1 1/2" 2" 4' 6" A A 1/4" TYP. TYP. TYP. TYP. 3/16 TYP. 1/4" TYP. 5/16 TYP. 5/16 TYP. L4x4x5/16" ANGLE W/ 2- 5/8" DIA x4" EPOXY BOLTS TO SLAB , TYP. 16" GA. PEN W/ 2" CONCRETE FILLER TYP. HSS10x10 POST INSIDE ELEVATOR SHAFT SEE PLAN HSS10X OUTRIGGER SEE PLAN PROVIDE L3x3x1/4 STIFFENER @ 2'-6" IN THE LANDING L2x2x1/4 LEDGER AT EACH TREAD TYP. LEVEL 2 SLAB UPRUN STRINGER SEE PLAN L4x4x1/2" BEARING ANGLE T&B AT OUTRIGGER WELDED TO THE TUBE POST L4x4x1/2" BEARING ANGLE T&B AT OUTRIGGER WELDED TO THE TUBE POST PLAN A-A 1/4" CAP PLATE TYP.
