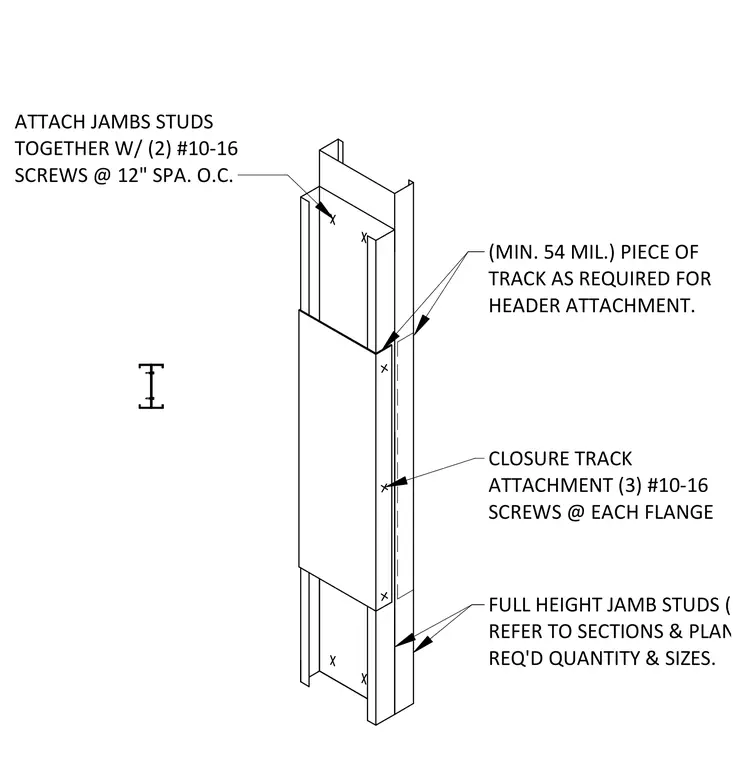

This assembly consists of full-height cold-formed steel jamb studs, with required quantities and sizes determined by project plans and sections. The jamb studs are fastened together using two number 10-16 screws spaced at 12 inches on center. A closure track is attached to the jambs using three number 10-16 screws at each flange. A minimum 54-mil piece of track is provided as required for header attachment.
Text on the drawing
FULL HEIGHT JAMB STUDS (TYP.) REFER TO SECTIONS & PLAN FOR REQ'D QUANTITY & SIZES. (MIN. 54 MIL.) PIECE OF TRACK AS REQUIRED FOR HEADER ATTACHMENT. CLOSURE TRACK ATTACHMENT (3) #10-16 SCREWS @ EACH FLANGE ATTACH JAMBS STUDS TOGETHER W/ (2) #10-16 SCREWS @ 12" SPA. O.C. SCREWED OPTION SCREWED OPTION
