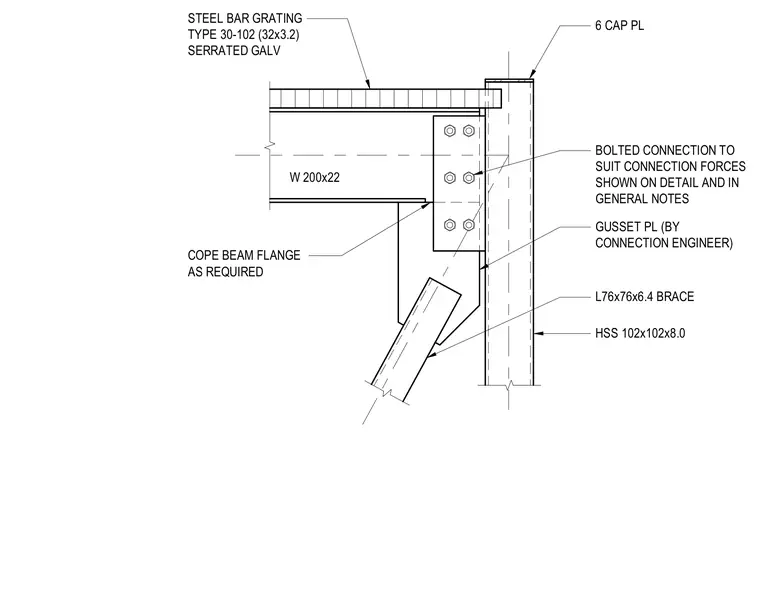

A W 200x22 beam frames into an HSS 102x102x8.0 column with a bolted connection designed to suit connection forces. The beam flange is coped as required, and the top of the column is capped with a six-millimeter cap plate. An L76x76x6.4 angle brace connects to a gusset plate designed by the connection engineer, framing into the column and beam assembly. Steel bar grating of type 30-102 (32x3.2) serrated galvanized finish sits on top of the structural steel framing.
W 200x22 COPE BEAM FLANGE AS REQUIRED STEEL BAR GRATING TYPE 30-102 (32x3.2) SERRATED GALV 6 CAP PL BOLTED CONNECTION TO SUIT CONNECTION FORCES SHOWN ON DETAIL AND IN GENERAL NOTES GUSSET PL (BY CONNECTION ENGINEER) L76x76x6.4 BRACE HSS 102x102x8.0
