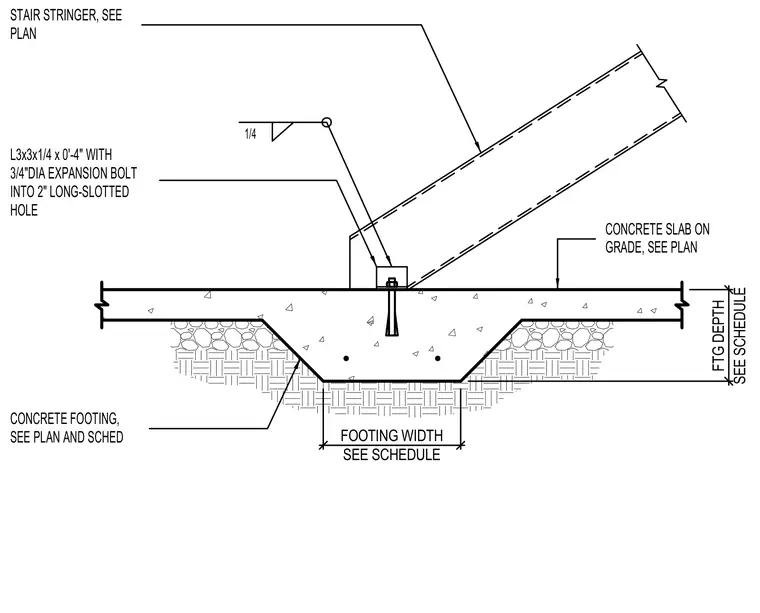

The stair stringer is supported by an L3x3x1/4 angle measuring four inches long, secured to a concrete footing and slab on grade. A three-quarter-inch diameter expansion bolt fastens the angle into a two-inch long-slotted hole. A quarter-inch fillet weld connects the angle to the stair stringer. The concrete footing width and depth are sized per schedule and plan.
L3x3x1/4 x 0'-4" WITH 3/4"DIA EXPANSION BOLT 1/4 CONCRETE SLAB ON GRADE, SEE PLAN STAIR STRINGER, SEE PLAN INTO 2" LONG-SLOTTED HOLE CONCRETE FOOTING, SEE PLAN AND SCHED FTG DEPTH FOOTING WIDTH SEE SCHEDULE SEE SCHEDULE
