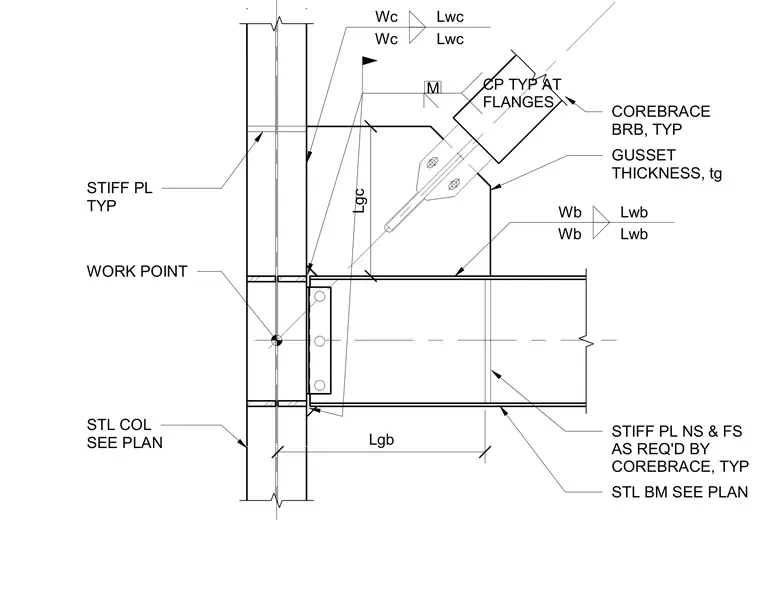

A buckling-restrained brace connects to a steel column and steel beam through a gusset plate, with specific gusset thickness and weld sizes defined on the drawing. Typical stiffener plates are welded to the column flanges and to the near side and far side of the beam as required by the brace design. A work point is established at the intersection of the framing centerlines. The steel column and steel beam sizes are specified per the structural plan.
Wb Lwb Wb Lwb CP TYP AT FLANGES WORK POINT STIFF PL TYP COREBRACE BRB, TYP GUSSET THICKNESS, tg STIFF PL NS & FS AS REQ'D BY COREBRACE, TYP Lgb Lgc STL BM SEE PLAN Wc Lwc Wc Lwc STL COL SEE PLAN M
