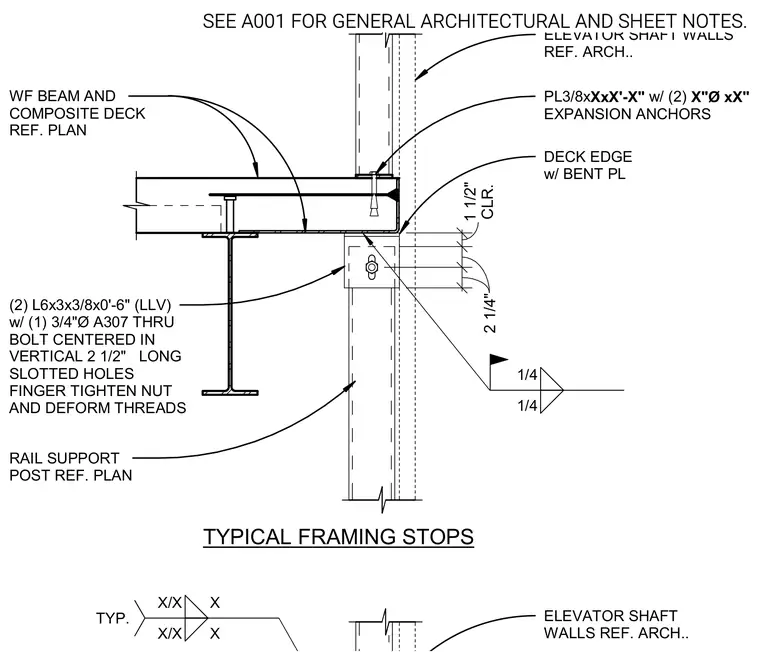

A structural framing stop connection ties a wide-flange beam and composite deck assembly to an elevator shaft wall. A continuous bent plate anchors at the deck edge using a three-eighths-inch plate secured with two expansion anchors. A pair of six-by-three-by-three-eighths-inch long-leg vertical angles connects the framing, fastened with a three-quarter-inch diameter A307 through bolt centered in a vertical two-and-a-half-inch long slotted hole. The nut is finger tightened and threads are deformed to allow movement as specified. A rail support post aligns with the framing stop per plan.
WF BEAM AND COMPOSITE DECK REF. PLAN RAIL SUPPORT POST REF. PLAN ELEVATOR SHAFT WALLS REF. ARCH.. PL3/8x XxX'-X" w/ (2) X"Ø xX" EXPANSION ANCHORS (2) L6x3x3/8x0'-6" (LLV) w/ (1) 3/4"Ø A307 THRU BOLT CENTERED IN VERTICAL 2 1/2" LONG SLOTTED HOLES FINGER TIGHTEN NUT AND DEFORM THREADS DECK EDGE w/ BENT PL ELEVATOR SHAFT WALLS REF. ARCH.. TYPICAL FRAMING STOPS 1/4 1/4 X/X X X/X X TYP. CLR. 1 1/2" 2 1/4" 2 1/4" SEE A001 FOR GENERAL ARCHITECTURAL AND SHEET NOTES.
