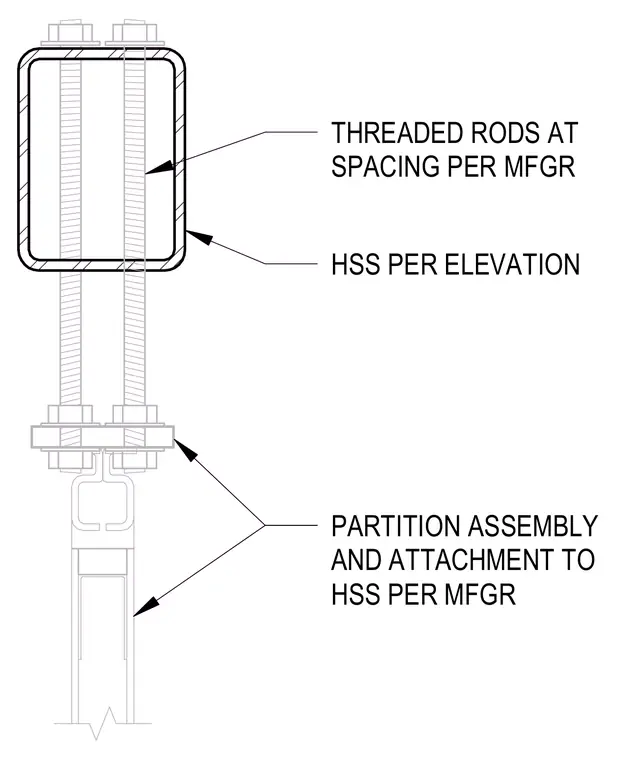

An operable partition is suspended from an overhead hollow structural section using threaded rods spaced according to the manufacturer specifications. The threaded rods pass through the top and bottom walls of the hollow structural section, secured with nuts and washers. The partition assembly and its attachment to the threaded rods are installed per the manufacturer guidelines.
THREADED RODS AT SPACING PER MFGR PARTITION ASSEMBLY AND ATTACHMENT TO HSS PER MFGR HSS PER ELEVATION THREADED RODS AT SPACING PER MFGR PARTITION ASSEMBLY AND ATTACHMENT TO HSS PER MFGR HSS PER ELEVATION
