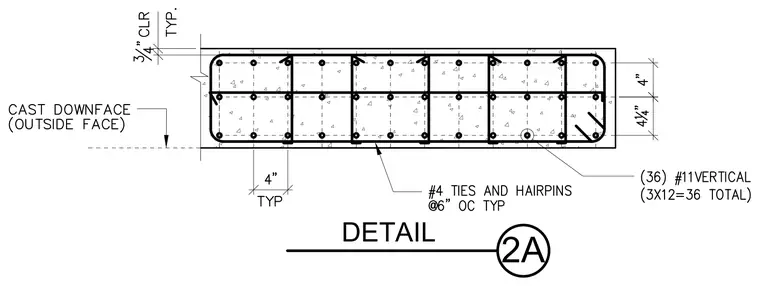

A reinforced concrete wall section contains thirty-six number eleven vertical reinforcing bars arranged in a three-by-twelve grid pattern. Number four ties and hairpins are spaced at six inches on center typically. The outside face is designated as the cast downface. Concrete clear cover is maintained at three-quarters of an inch typically.
