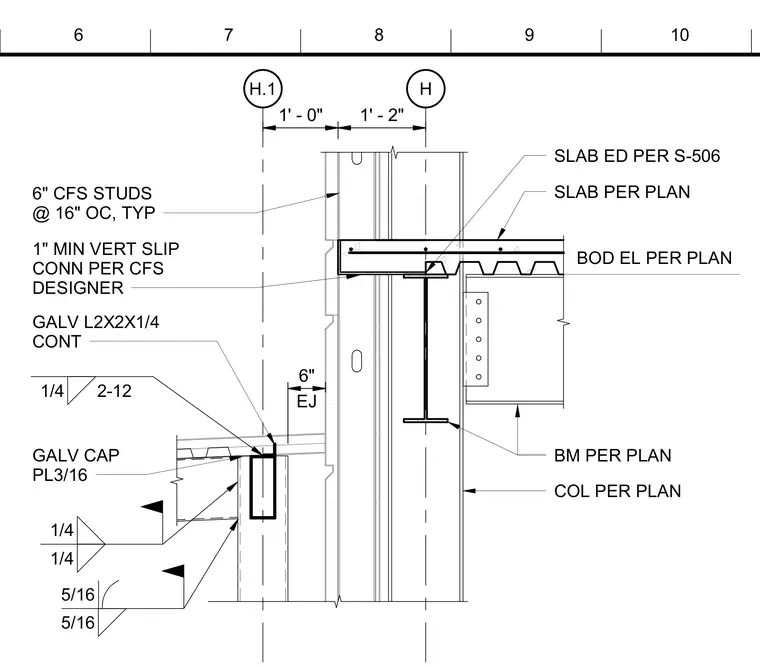

An expansion joint assembly featuring a six-inch gap is detailed with continuous galvanized angle members and a galvanized cap plate sized at 3/16 inches. The cold-formed steel studs measure 6 inches and are spaced at 16 inches on center typically, featuring a 1-inch minimum vertical slip connection engineered by the cold-formed steel designer. Structural steel framing incorporates columns and beams sized per plan, with a slab edge configuration coordinated per drawing S-506. Fillet welds of 1/4-inch and 5/16-inch sizes secure the steel components as indicated by standard welding symbols.
H SLAB PER PLAN GALV L2X2X1/4 CONT 1' - 0" 1' - 2" 1/4 2-12 1/4 1/4 5/16 5/16 COL PER PLAN BM PER PLAN 6" CFS STUDS @ 16" OC, TYP 1" MIN VERT SLIP CONN PER CFS DESIGNER H.1 BOD EL PER PLAN 116' - 2 1/2" SLAB ED PER S-506 EJ 6" GALV CAP PL3/16 7 9 6 8 10
