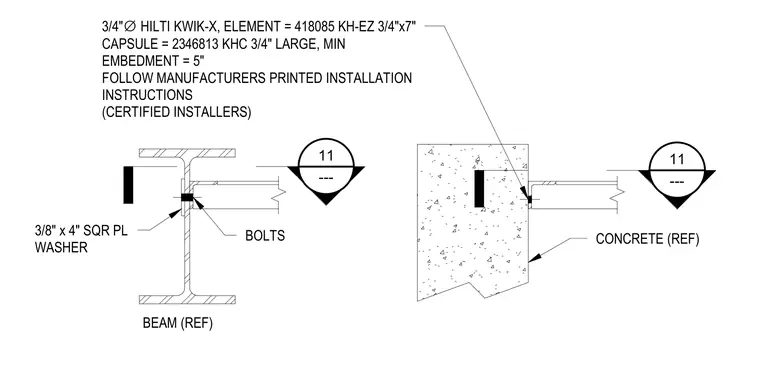

This connection secures a steel beam to a concrete wall using a 3/4-inch diameter Hilti Kwik-X adhesive anchor, element number 418085 KH-EZ 3/4-inch by 7-inch, with a 2346813 KHC 3/4-inch large capsule. The assembly requires a minimum embedment of 5 inches and must be installed by certified installers following the manufacturer's printed instructions. The beam web is fastened to the concrete face using bolts and a 3/8-inch by 4-inch square plate washer. The concrete wall is referenced for positioning, and the beam is shown in section for alignment.
