Structural · S-YQJM6

Housekeeping Pad on Slab-On-Grade

Materials

Concrete Reinforced Concrete Steel

Elements

Anchors / Embeds Floors / Slabs Foundations / Footings Reinforcing

Connections

Embed Plate Rebar Splice / Development

About this detail

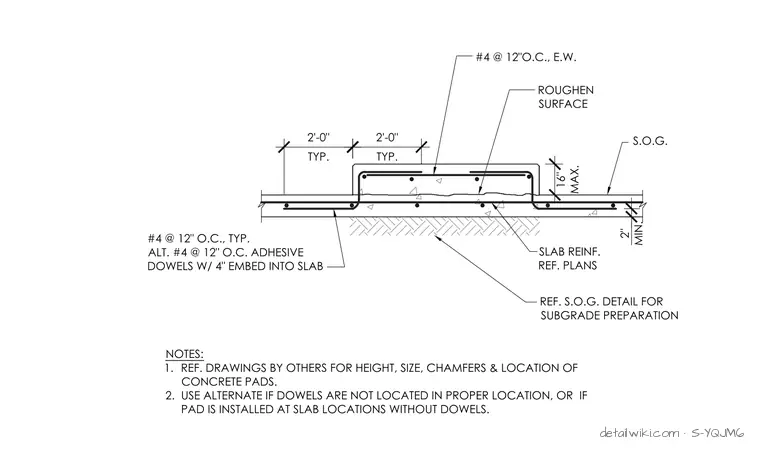

The concrete housekeeping pad sits atop a slab-on-grade with a roughened bonding surface between the two pours. Reinforcement consists of number four bars at twelve inches on center each way within the pad, tied into the underlying slab. An alternate detail provides number four adhesive dowels with four-inch embedment into the slab when cast-in dowels are missing or improperly located. The underlying slab-on-grade requires a minimum two-inch clearance and subgrade preparation per referenced structural plans. Notes direct coordination with drawings by others for housekeeping pad dimensions, heights, sizes, chamfers, and exact locations.
