Typical Concrete Beam Reinforcing and Construction Joint Details

Materials

Concrete Reinforced Concrete

Elements

Beams Floors / Slabs Expansion / Control Joints Reinforcing

Connections

Rebar Splice / Development

About this detail

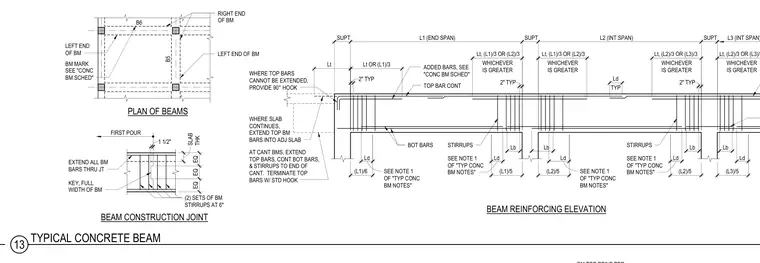

Reinforcement placement, framing layouts, and construction joints for reinforced concrete beams. The elevation details continuous top and bottom bars, beam stirrups spaced at specified intervals, and development length requirements across end and interior spans. Additional callouts specify standard hooks, top bar extensions into adjacent slabs, and cantilever beam reinforcement configurations. A separate partial framing plan shows beam marks and column supports, while the beam construction joint detail indicates a full-width keyway with two sets of beam stirrups at six inches.
