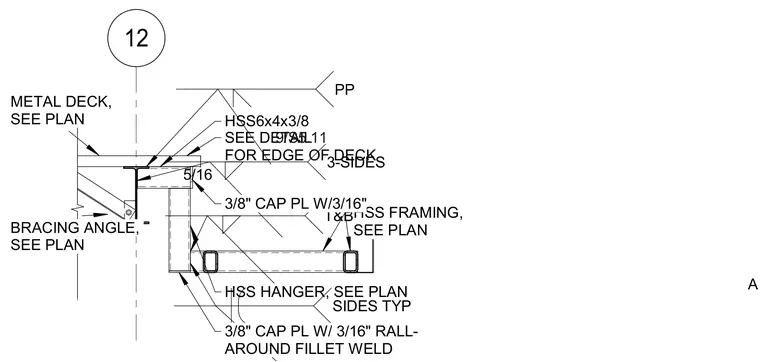

An HSS6x4x3/8 structural steel member frames below a metal deck, with a bracing angle attached as shown on plan. A vertical HSS hanger connects to the framing using a three-eighths-inch cap plate welded with a five-sixteenths-inch fillet weld on three sides top and bottom. The bottom of the hanger utilizes a three-eighths-inch cap plate with a three-sixteenths-inch roll-around fillet weld. Additional HSS framing members are tied into the assembly per the structural plans.
ALSO WELD AT 12 METAL DECK, SEE PLAN SEE DETAIL FOR EDGE OF DECK BRACING ANGLE, SEE PLAN HSS6x4x3/8 9/S5.11 PP 5/16 3-SIDES T&B TYP HSS FRAMING, SEE PLAN HSS HANGER, SEE PLAN 3/8" CAP PL W/3/16" SIDES TYP 3/8" CAP PL W/ 3/16" RALL- AROUND FILLET WELD
