Type Z Splice

Materials

Steel

Elements

Trusses Connections / Plates

Connections

Moment Connection Gusset Plate Bolted Connection Rebar Splice / Development

About this detail

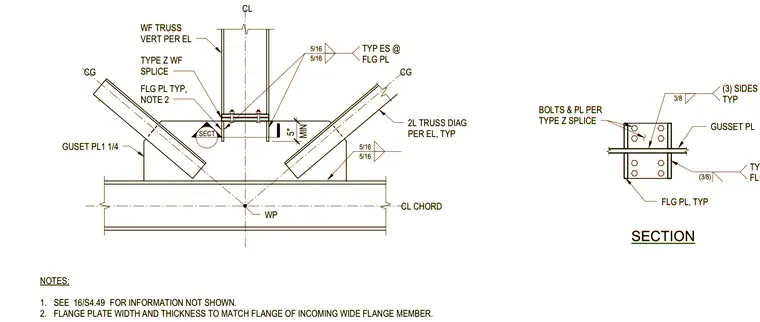

A Type Z splice connection joins a wide-flange truss vertical member to a chord member with intersecting diagonal angles. A 1 1/4-inch gusset plate connects the framing members, supported by five-sixteenths inch fillet welds on three sides as specified. Flange plates match the width and thickness of the incoming wide flange member and are bolted with associated plates per the splice schedule. A five-inch minimum dimension is maintained from the centerline intersection at the work point.
