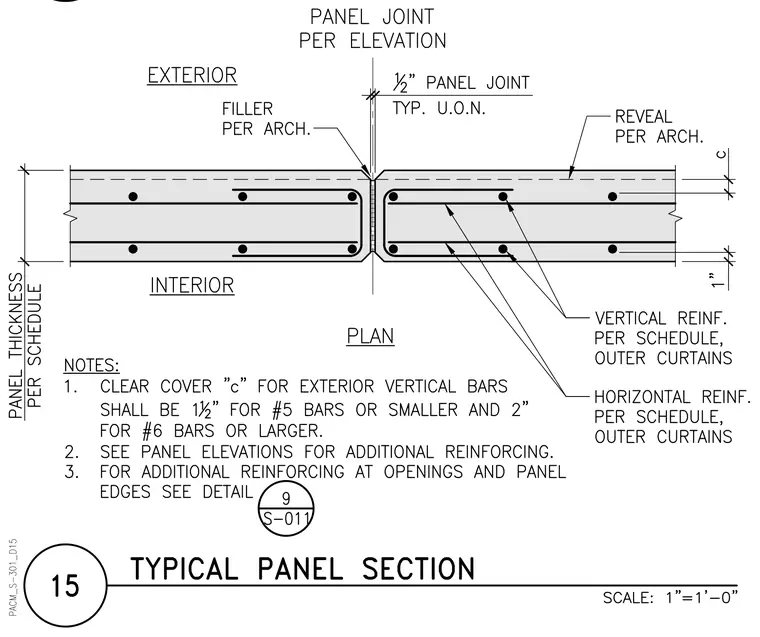

This precast concrete wall panel joint features a one-half inch typical joint width with filler material provided per architectural specifications. The panels are reinforced with vertical and horizontal outer curtain reinforcing bars sized per schedule. Clear cover dimension "c" for exterior vertical bars is one and one-half inches for number five bars or smaller and two inches for number six bars or larger.
