A buckling-restrained brace collar assembly and shim insertion interface with a structural steel gusset plate and braced frame column. Two three-quarter inch thick by three-quarter inch wide by six-inch long shim plates are positioned within a one-inch space between the collar assembly and the gusset plate. The collar assembly is shipped loose and welded in the field using five-sixteenths inch fillet welds after the buckling-restrained brace is fully welded at both ends. Field notes direct the removal of a temporary rebar stop before sliding the collar into position against the gusset plate edge. Optional weld placements on the near or far side of the gusset plate and top or bottom of the core plate are permitted at the erector's option.

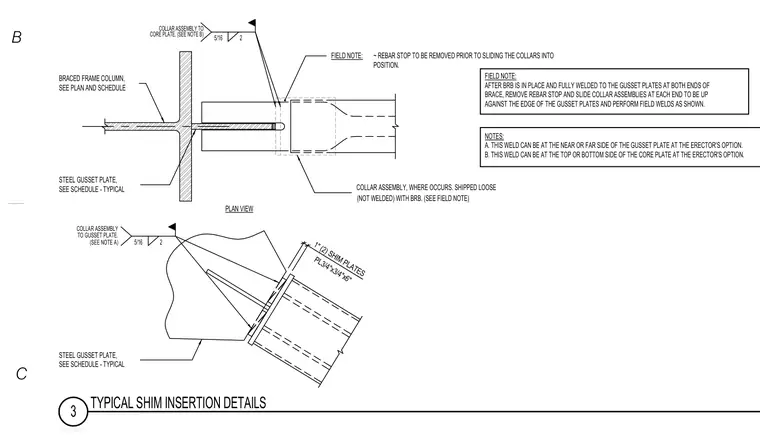

210344_S301-03 3 TYPICAL SHIM INSERTION DETAILS COLLAR ASSEMBLY, WHERE OCCURS. SHIPPED LOOSE (NOT WELDED) WITH BRB. (SEE FIELD NOTE) BRACED FRAME COLUMN, SEE PLAN AND SCHEDULE STEEL GUSSET PLATE, SEE SCHEDULE - TYPICAL PLAN VIEW 1" (2) SHIM PLATES PL3/4"x3/4"x6" COLLAR ASSEMBLY TO GUSSET PLATE. FIELD NOTE: AFTER BRB IS IN PLACE AND FULLY WELDED TO THE GUSSET PLATES AT BOTH ENDS OF BRACE, REMOVE REBAR STOP AND SLIDE COLLAR ASSEMBLIES AT EACH END TO BE UP AGAINST THE EDGE OF THE GUSSET PLATES AND PERFORM FIELD WELDS AS SHOWN. NOTES: A. THIS WELD CAN BE AT THE NEAR OR FAR SIDE OF THE GUSSET PLATE AT THE ERECTOR'S OPTION. B. THIS WELD CAN BE AT THE TOP OR BOTTOM SIDE OF THE CORE PLATE AT THE ERECTOR'S OPTION. FIELD NOTE: ~ REBAR STOP TO BE REMOVED PRIOR TO SLIDING THE COLLARS INTO POSITION. COLLAR ASSEMBLY TO 5/16 2 CORE PLATE. (SEE NOTE B) 5/16 2 STEEL GUSSET PLATE, SEE SCHEDULE - TYPICAL (SEE NOTE A) B C
