Continuity plates are placed on both sides of the column web with thicknesses based on the connected beam flanges. A cope in the continuity plate is left unwelded near the column web per AISC guidelines. Weld sizes and dimensions conform to AISC standards including specified k and k1 distances. Optional welds are indicated for the web and flange connections.

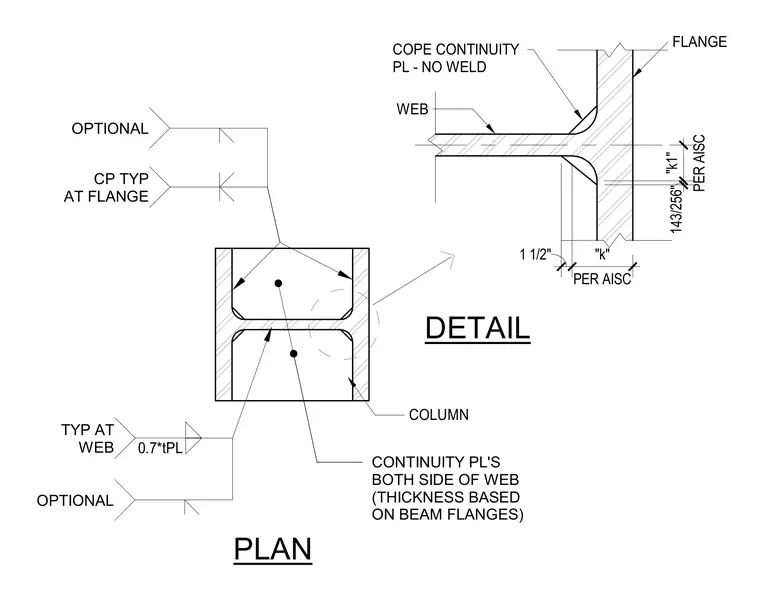

DETAIL PLAN COLUMN WEB FLANGE COPE CONTINUITY PL - NO WELD 143/256" PER AISC "k1" 1 1/2" PER AISC "k" CONTINUITY PL'S BOTH SIDE OF WEB (THICKNESS BASED ON BEAM FLANGES) OPTIONAL TYP AT WEB 0.7*tPL OPTIONAL CP TYP AT FLANGE
