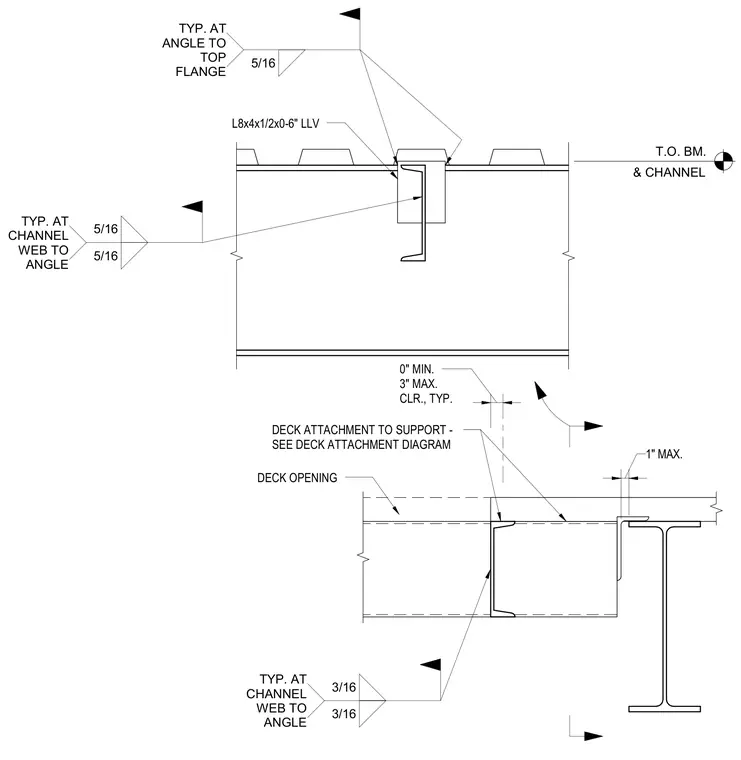

An L8x4x1/2 angle running six inches long connects the metal deck assembly to the structural support, maintaining a maximum one-inch deck opening and zero to three inches of typical clearance. A structural channel frames the deck opening with a five-sixteenths inch fillet weld connecting the angle to the top flange, and five-sixteenths inch welds securing the channel web to the angle. A secondary connection utilizes three-sixteenths inch fillet welds at the channel web to angle interface. The assembly accommodates floor and roof deck penetrations parallel to supporting steel beams.
L8x4x1/2x0-6" LLV DECK ATTACHMENT TO SUPPORT - SEE DECK ATTACHMENT DIAGRAM 1" MAX. DECK OPENING 0" MIN. 3" MAX. CLR., TYP. T.O. BM. & CHANNEL 5/16 TYP. AT ANGLE TO TOP FLANGE 5/16 5/16 TYP. AT CHANNEL WEB TO ANGLE 3/16 3/16 TYP. AT CHANNEL WEB TO ANGLE
