An inverted angle measuring 2 1/2 by 2 1/2 by 3/16 inches provides deck support at the face of the stair stringers. The stair stringer is cranked and coped to suit the supporting structural steel beam. Concrete-filled metal deck spans across the assembly, positioned per plan.

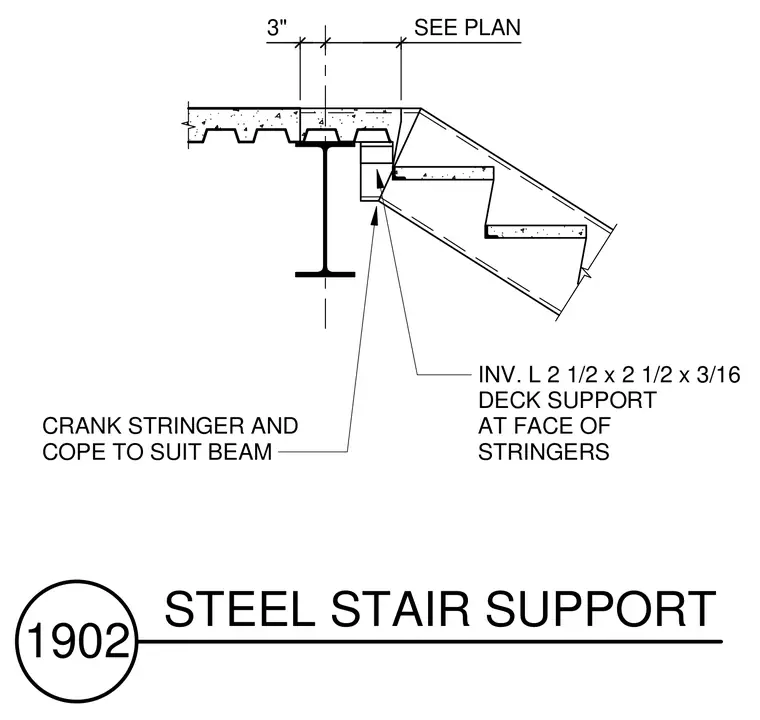

INV. L 2 1/2 x 2 1/2 x 3/16 DECK SUPPORT AT FACE OF STRINGERS CRANK STRINGER AND COPE TO SUIT BEAM 3" SEE PLAN 1902 STEEL STAIR SUPPORT
