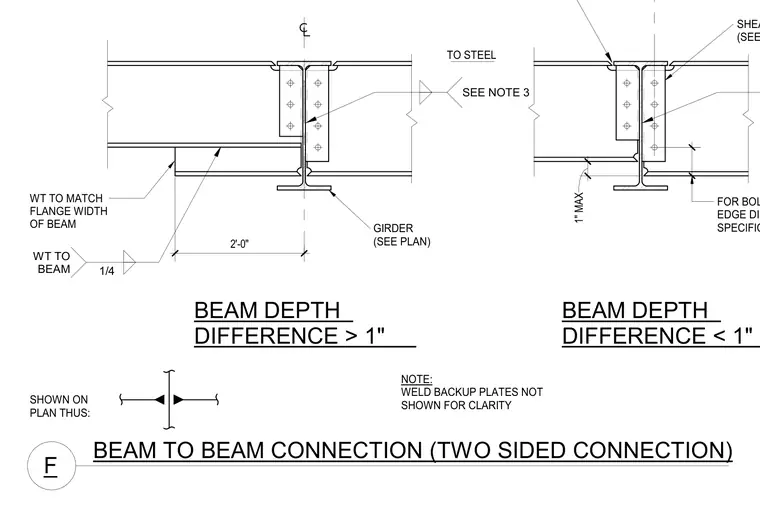

Two steel framing configurations join incoming beams to a supporting girder web using typical shear tabs and structural tee sections. When the beam depth difference exceeds one inch, a WT section matches the flange width of the beam and connects with a quarter-inch fillet weld, maintaining a two-foot clearance dimension. When the beam depth difference is less than one inch, standard shear tabs and connection plates attach directly to the supporting girder web. Bolt spacing and edge distances follow AISC specifications, and weld backup plates are omitted for clarity. The assembly accommodates framing conditions where intersecting beams meet at a common girder support.
BEAM TO BEAM CONNECTION (TWO SIDED CONNECTION) F BEAM DEPTH DIFFERENCE > 1" BEAM DEPTH DIFFERENCE < 1" NOTE: WELD BACKUP PLATES NOT SHOWN FOR CLARITY TO STEEL FOR BOLT SPACING AND EDGE DISTANCE SEE AISC SPECIFICATIONS, TYP SHEAR TAB (SEE NOTE 3) GIRDER (SEE PLAN) WT TO MATCH FLANGE WIDTH OF BEAM SHOWN ON PLAN THUS: 2'-0" 1/4 WT TO BEAM SEE NOTE 3 1" MAX .
