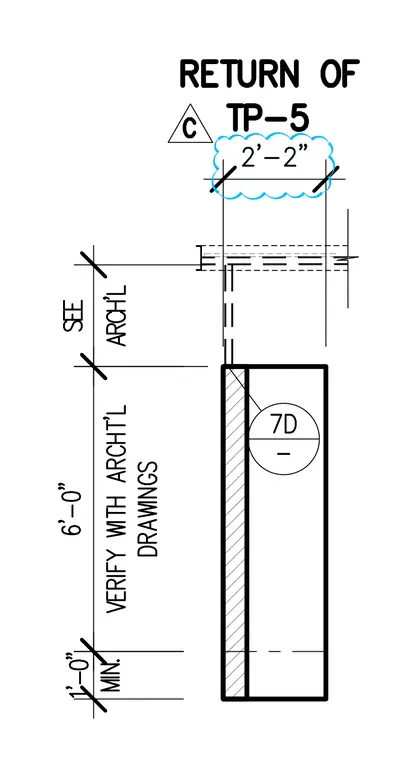

A structural wall return at TP-5 features a width of two feet two inches with vertical dimensions indicating a one-foot minimum offset and a six-foot height requiring verification with architectural drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
