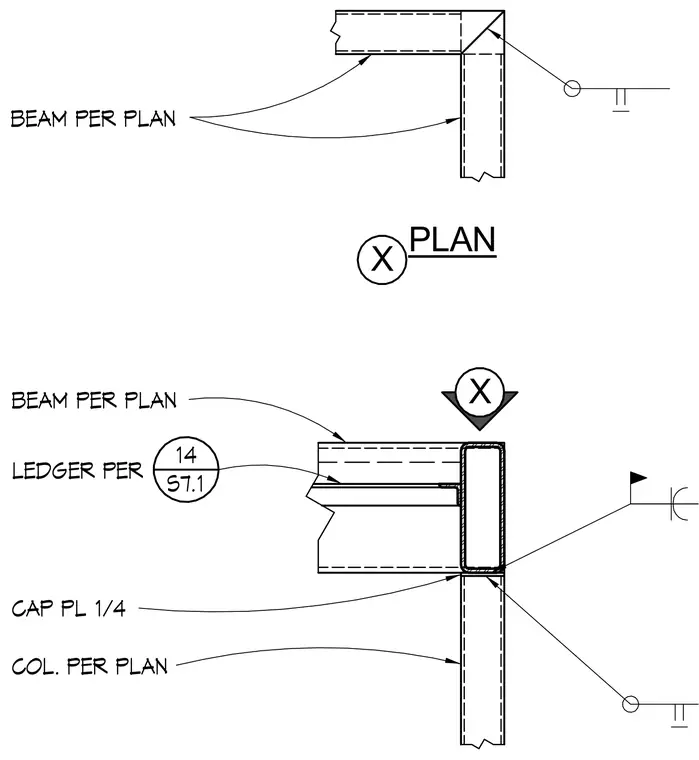

Beams frame into a structural steel column sized per plan, topped with a one-quarter inch cap plate. A ledger is provided per sheet S7.1 detail fourteen. Field welds secure the connection assembly.
X PLAN X BEAM PER PLAN CAP PL 1/4 COL. PER PLAN BEAM PER PLAN LEDGER PER 14 S7.1
