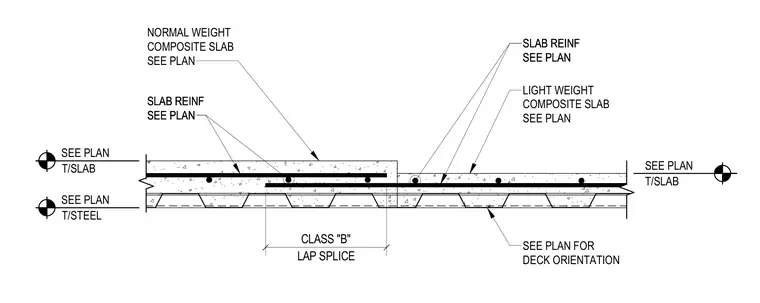

A normal weight composite slab transitions to a lightweight composite slab over metal deck, with slab reinforcement sized per plan. The transition zone incorporates a class B lap splice between the reinforcement bars from each slab section. Deck orientation and top of slab and steel elevations are sized per plan.
T/SLAB SEE PLAN T/STEEL SEE PLAN T/SLAB SEE PLAN SEE PLAN FOR DECK ORIENTATION LIGHT WEIGHT COMPOSITE SLAB SEE PLAN SLAB REINF SEE PLAN SLAB REINF SEE PLAN SLAB REINF SEE PLAN NORMAL WEIGHT COMPOSITE SLAB SEE PLAN SLAB REINF SEE PLAN LAP SPLICE CLASS "B"
