Structural · S-YNAV4

Typical Closure Plate (Overhang 'L' ≤ 12")

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Walls Curtain Walls Facades / Cladding Roofs Decks Arches Connections / Plates

About this detail

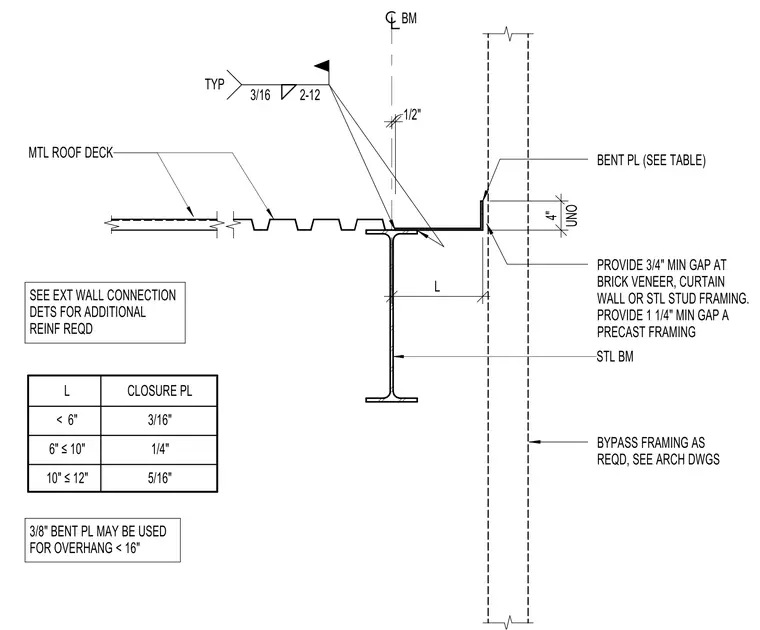

A bent plate closure spans from the metal roof deck to the exterior wall framing, bearing on a steel beam centered below. The bent plate thickness is sized according to overhang length L, using a three-sixteenths inch plate for overhangs under six inches, a one-quarter inch plate for overhangs between six and ten inches, and a five-sixteenths inch plate for overhangs between ten and twelve inches. A three-eighths inch bent plate may be used for overhangs under sixteen inches. A three-sixteenths inch fillet weld with two-inch welds at twelve-inch spacing is typically applied. Clearances require a three-quarters inch minimum gap at brick veneer, curtain wall, or steel stud framing, and a one and one-quarter inch minimum gap at precast framing. Bypass framing is provided as required per architectural drawings.
