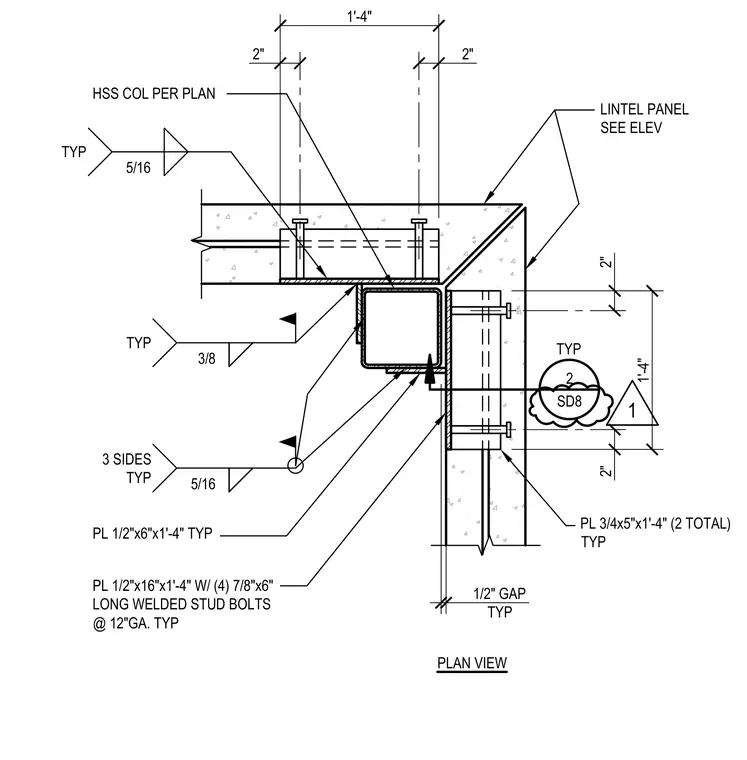

A hollow structural section column connects to a lintel panel through welded steel plates and embedded stud anchors. A three-eighths-inch fillet weld secures the column to a half-inch-by-six-inch-by-one-foot-four-inch plate, while five-sixteenths fillet welds join the assembly on three sides. A half-inch-by-sixteen-inch-by-one-foot-four-inch plate embedded in the panel features four seven-eighths-inch-by-six-inch welded stud bolts spaced at twelve inches on gauge. A separate three-quarter-inch-by-five-inch-by-one-foot-four-inch plate provides additional bearing with a typical one-half-inch gap.
LINTEL PANEL SEE ELEV HSS COL PER PLAN 5/16 3 SIDES TYP PL 1/2"x6"x1'-4" TYP PL 1/2"x16"x1'-4" W/ (4) 7/8"x6" LONG WELDED STUD BOLTS @ 12"GA. TYP 1'-4" 2" 2" PLAN VIEW TYP PL 3/4x5"x1'-4" (2 TOTAL) TYP 5/16 TYP 2 SD8 TYP 1'-4" 2" 2" 3/8 1/2" GAP TYP 1
