Cold-formed steel members are connected using powder-actuated fasteners driven through the thickness of the steel or self-drilling TEK screws. Powder-actuated fasteners in steel require a one and a half inch minimum fastener spacing. Powder-actuated fasteners in concrete require a three inch minimum edge distance and a four inch minimum fastener spacing with maximum penetration limited to one third of the slab thickness. Self-drilling TEK screws must penetrate a minimum of three threads past the final ply. Minimum edge distances and fastener spacings are provided for size number ten and number twelve screws.

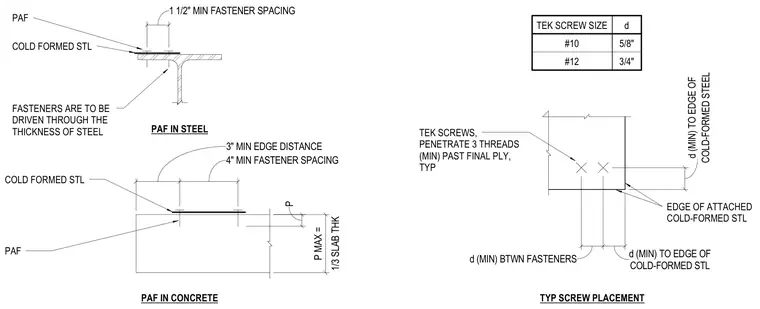

FASTENERS ARE TO BE DRIVEN THROUGH THE THICKNESS OF STEEL PAF COLD FORMED STL 1 1/2" MIN FASTENER SPACING PAF IN STEEL d (MIN) BTWN FASTENERS COLD-FORMED STL d (MIN) TO EDGE OF COLD-FORMED STEEL d (MIN) TO EDGE OF EDGE OF ATTACHED COLD-FORMED STL TEK SCREWS, PENETRATE 3 THREADS (MIN) PAST FINAL PLY, TYP TEK SCREW SIZE #10 #12 d 5/8" 3/4" TYP SCREW PLACEMENT PAF IN CONCRETE P 1/3 SLAB THK P MAX = PAF COLD FORMED STL 3" MIN EDGE DISTANCE 4" MIN FASTENER SPACING
