An HSS stub column connects to a supporting steel beam via a base plate assembly. The base plate is secured with four three-quarter-inch diameter A325 bolts. Three-eighth-inch stiffener plates are provided on near and far sides, extending to the beam flange edge with typical quarter-inch welds. A diagonal bracing member frames into the stub column. The steel detailer provides connection design for base plates at braced bays based on reactions indicated in framing elevations.

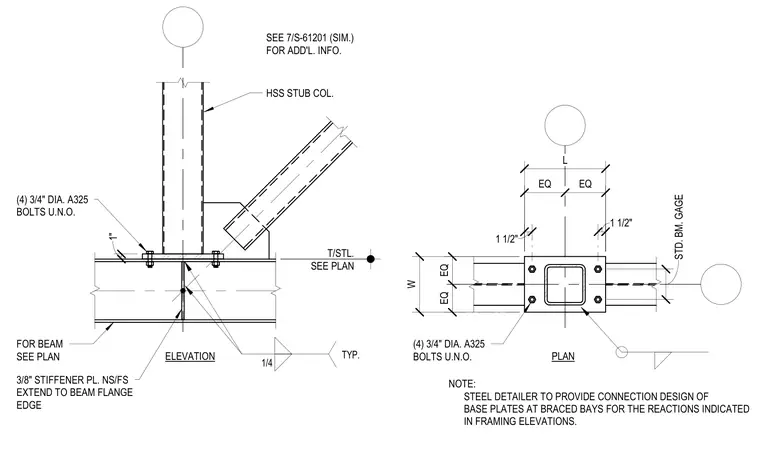

T/STL. SEE PLAN 1 1/2" EQ EQ W STD. BM. GAGE 1 1/2" EQ EQ L (4) 3/4" DIA. A325 BOLTS U.N.O. PLAN NOTE: STEEL DETAILER TO PROVIDE CONNECTION DESIGN OF BASE PLATES AT BRACED BAYS FOR THE REACTIONS INDICATED IN FRAMING ELEVATIONS. 1" (4) 3/4" DIA. A325 BOLTS U.N.O. FOR BEAM SEE PLAN 3/8" STIFFENER PL. NS/FS EXTEND TO BEAM FLANGE EDGE 1/4 TYP. HSS STUB COL. ELEVATION SEE 7/S-61201 (SIM.) FOR ADD'L. INFO.
