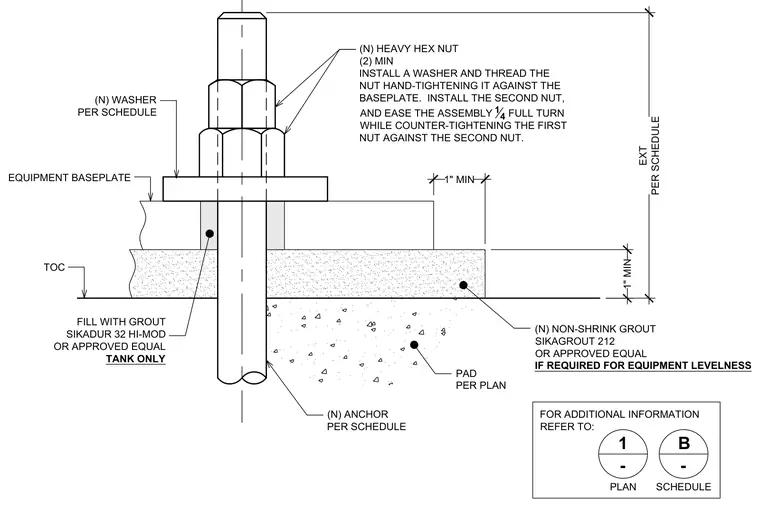

An equipment baseplate rests on a new washer and a pair of heavy hex nuts threaded onto a new anchor bolt. A washer is installed and the first nut is hand-tightened against the baseplate before the second nut is added and turned one-quarter full turn while counter-tightened. The space beneath the baseplate is filled with Sikadur 32 Hi-Mod epoxy grout or approved equal for tank applications. A new non-shrink grout pad of SikaGrout 212 or approved equal is placed beneath the equipment baseplate as required for equipment levelness, maintaining a one-inch minimum thickness over the concrete pad.
EXT PER SCHEDULE TOC EQUIPMENT BASEPLATE PAD PER PLAN (N) HEAVY HEX NUT (2) MIN INSTALL A WASHER AND THREAD THE NUT HAND-TIGHTENING IT AGAINST THE BASEPLATE. INSTALL THE SECOND NUT, AND EASE THE ASSEMBLY 14 FULL TURN WHILE COUNTER-TIGHTENING THE FIRST NUT AGAINST THE SECOND NUT. (N) WASHER PER SCHEDULE (N) ANCHOR PER SCHEDULE FILL WITH GROUT SIKADUR 32 HI-MOD OR APPROVED EQUAL TANK ONLY (N) NON-SHRINK GROUT SIKAGROUT 212 OR APPROVED EQUAL IF REQUIRED FOR EQUIPMENT LEVELNESS 1" MIN 1" MIN FOR ADDITIONAL INFORMATION REFER TO: 1 - B - PLAN SCHEDULE
