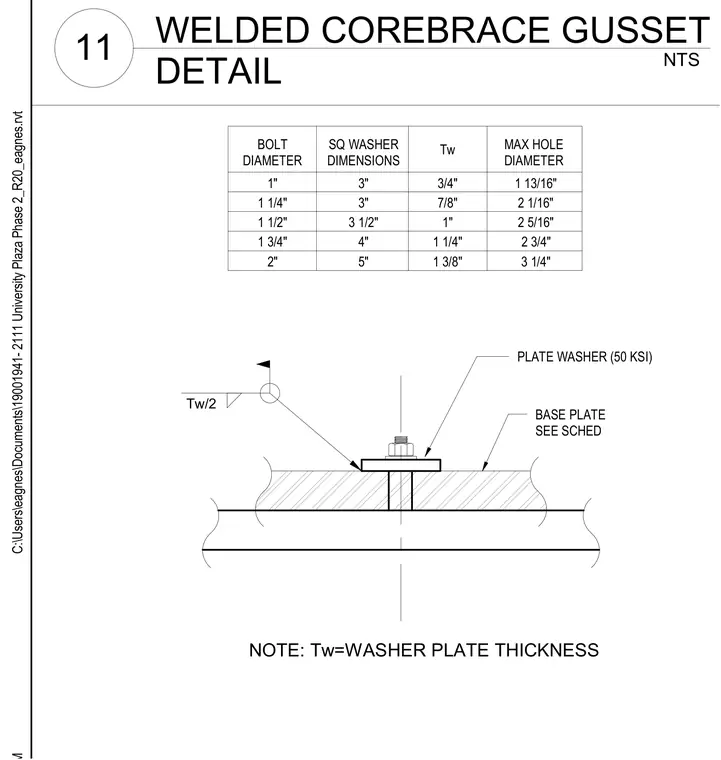

A square plate washer is installed over an oversized structural hole on a base plate. The assembly features a 50 KSI plate washer secured by a bolt with dimensions specified in the accompanying schedule matching bolt diameters from 1 inch to 2 inches to corresponding washer dimensions, thickness Tw, and maximum hole diameters. A weld symbol designates a weld size of Tw divided by 2. The base plate rests upon structural elements sized per plan.
PLATE WASHER (50 KSI) BASE PLATE SEE SCHED Tw/2 NOTE: Tw=WASHER PLATE THICKNESS BOLT DIAMETER SQ WASHER DIMENSIONS Tw MAX HOLE DIAMETER 1" 1 1/4" 1 1/2" 1 3/4" 3" 3" 3 1/2" 4" 2" 5" 1 13/16" 2 1/16" 2 5/16" 2 3/4" 3 1/4" 3/4" 7/8" 1" 1 1/4" 1 3/8" C:\Users\eagnes\Documents\19001941- 2111 University Plaza Phase 2_R20_eagnes.rvt NTS 11 WELDED COREBRACE GUSSET DETAIL
