About this detail

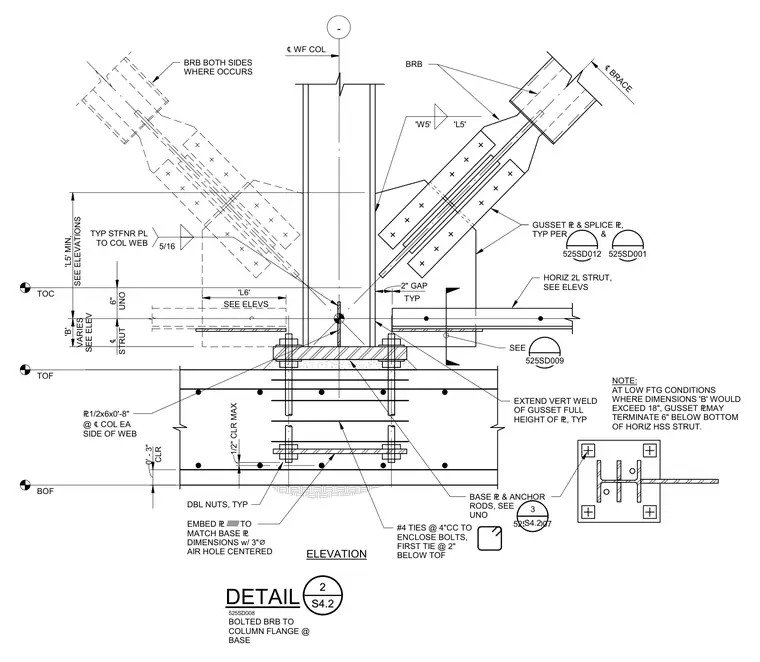

A buckling restrained brace connects to a wide flange column flange near the base plate. A gusset plate and splice plate connect the brace assembly, supported by a horizontal double-angle strut and stiffener plates welded to the column web with five-sixteenths inch fillet welds. Anchor rods with double nuts secure the base plate to an embed plate, which features a three-inch diameter centered air hole. Number four ties spaced at four inches on center enclose the anchor bolts, with the first tie positioned two inches below the top of the gusset plate. At low footing conditions where dimension B exceeds eighteen inches, the gusset plate may terminate six inches below the bottom of the horizontal hollow structural section strut.
