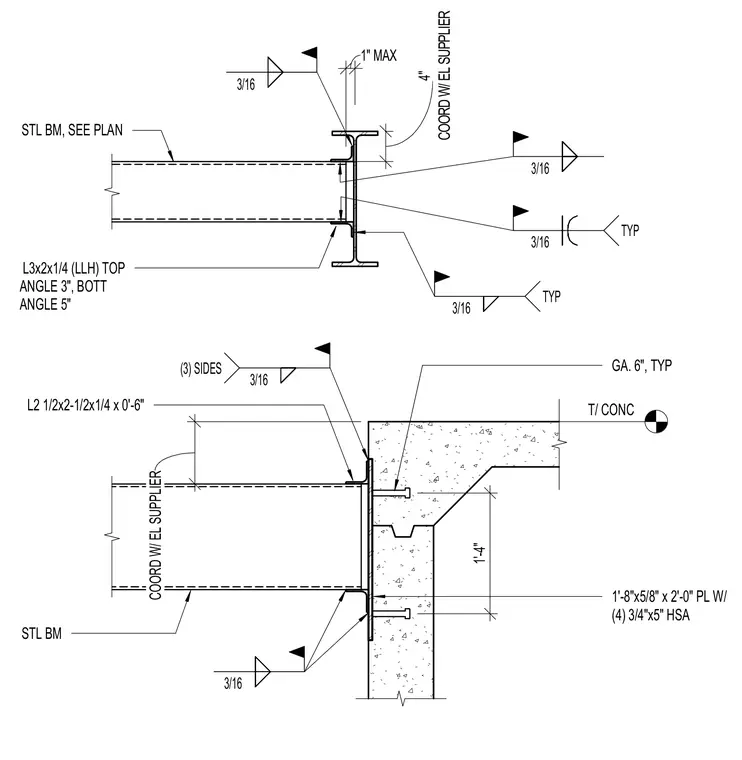

A steel beam connects to a concrete wall and structural column using welded angles and an embedded plate. The embedded plate measures 1'-8" by 5/8" by 2'-0" and is anchored with four 3/4" by 5" HSA anchors. Top and bottom angles sized L3x2x1/4 and L2 1/2x2-1/2x1/4 secure the steel beam to the support members with 3/16-inch fillet welds on three sides. Coordination with the electrical supplier is required for specific dimensions and clearances.
L2 1/2x2-1/2x1/4 x 0'-6" STL BM GA. 6", TYP 1'-8"x5/8" x 2'-0" PL W/ (4) 3/4"x5" HSA STL BM, SEE PLAN L3x2x1/4 (LLH) TOP ANGLE 3", BOTT ANGLE 5" COORD W/ EL SUPPLIER 1'-4" T/ CONC 1" MAX 3/16 3/16 TYP 3/16 TYP 3/16 3/16 (3) SIDES 3/16 COORD W/ EL SUPPLIER 4"
