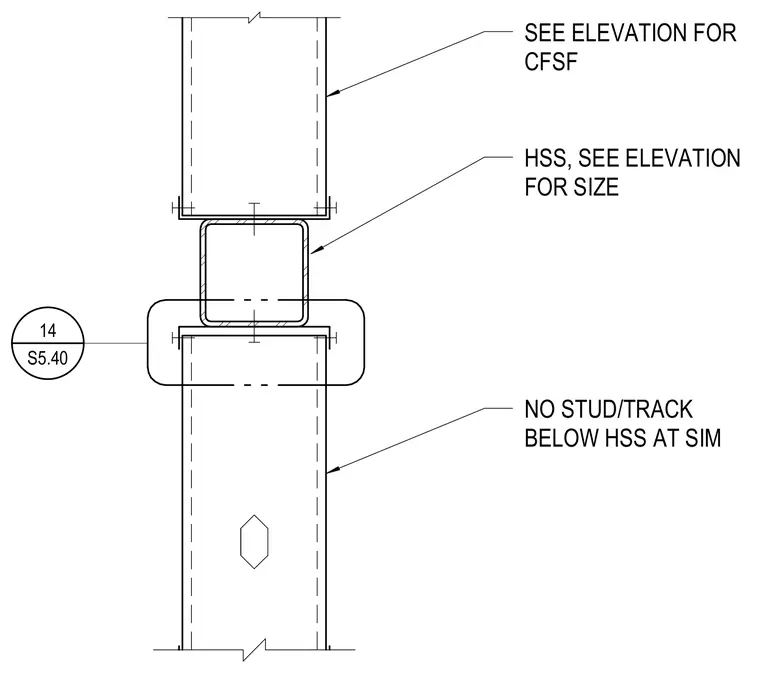

A hollow structural section member is framed between upper and lower cold-formed steel framing members. The sizing for the hollow structural section and the cold-formed steel framing is determined per elevation. A note specifies that there is no stud or track below the hollow structural section at similar conditions.
HSS, SEE ELEVATION FOR SIZE NO STUD/TRACK BELOW HSS AT SIM SEE ELEVATION FOR CFSF S5.40 14
