Three-quarter-inch diameter studs are welded to the top flange of a structural steel beam to develop composite action with the slab. Single stud rows maintain a minimum spacing of four and one-half inches and a maximum spacing of one foot zero inches, centered on the beam centerline. Double stud rows maintain the same longitudinal spacing with a three-inch transverse spacing between studs, placed one and one-half inches from the beam edges. Studs are spaced equally along the beam unless noted otherwise.

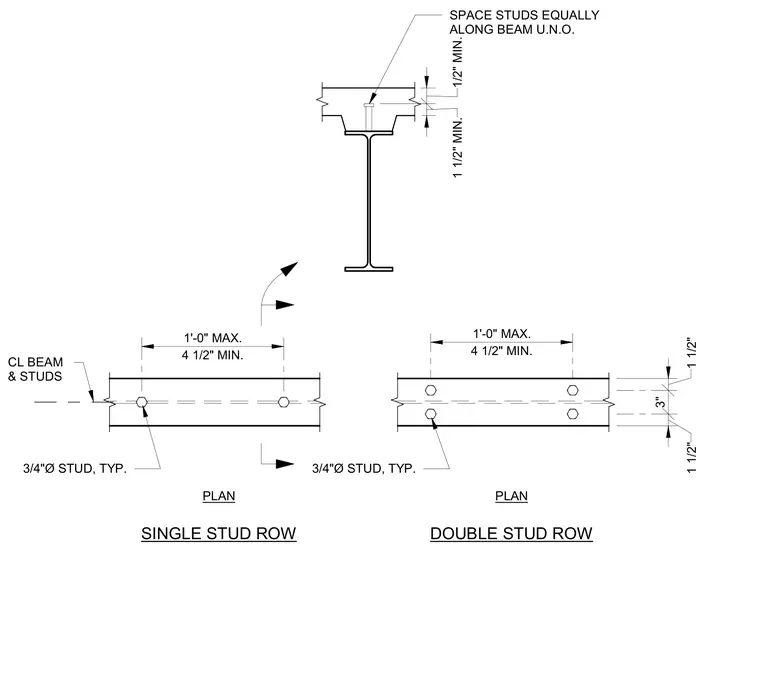

4 1/2" MIN. 1'-0" MAX. SINGLE STUD ROW 3/4"Ø STUD, TYP. DOUBLE STUD ROW 4 1/2" MIN. 1'-0" MAX. 1 1/2" MIN. 1/2" MIN. 3/4"Ø STUD, TYP. SPACE STUDS EQUALLY ALONG BEAM U.N.O. PLAN PLAN 1 1/2" 3" 1 1/2" CL BEAM & STUDS
