A wide flange beam connects to steel plates including side plates, a back plate, and a bottom plate. Self-drilling screws are spaced at one and a half inches stagger typically on each side plate, with pre-drilled holes in the plates. Top and bottom flanges are welded with specified sizes. A one-eighth inch gap is provided between the sides of the beam and the steel plates. The beam is chamfered or rabbeted at welds to the bottom plate a maximum of the weld size plus one-eighth inch.

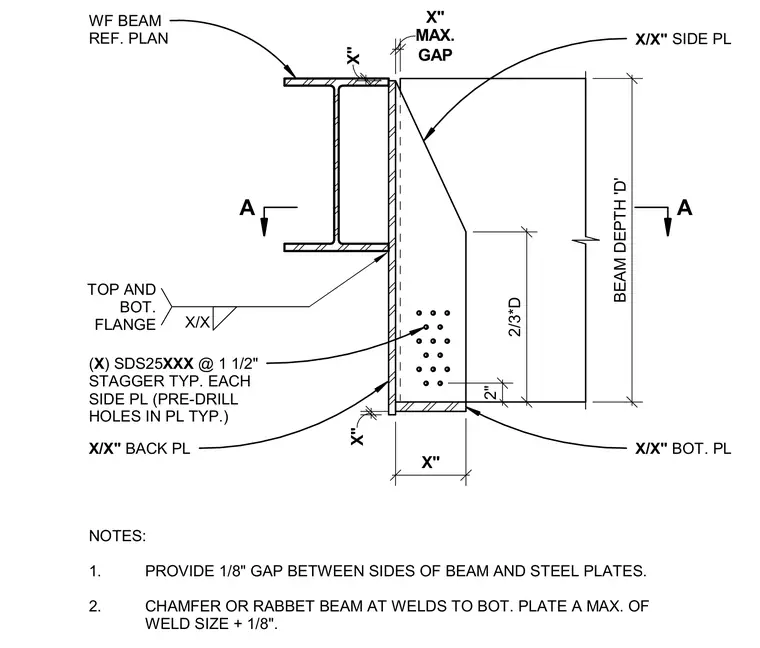

GAP X" MAX. WF BEAM REF. PLAN X/X TOP AND BOT. FLANGE ( X ) SDS25 XXX @ 1 1/2" STAGGER TYP. EACH SIDE PL (PRE-DRILL HOLES IN PL TYP.) X/X" BACK PL X/X" SIDE PL BEAM DEPTH 'D' 2/3*D X/X" BOT. PL X" X" A A NOTES: 1. PROVIDE 1/8" GAP BETWEEN SIDES OF BEAM AND STEEL PLATES. 2. CHAMFER OR RABBET BEAM AT WELDS TO BOT. PLATE A MAX. OF WELD SIZE + 1/8". 2" X"
