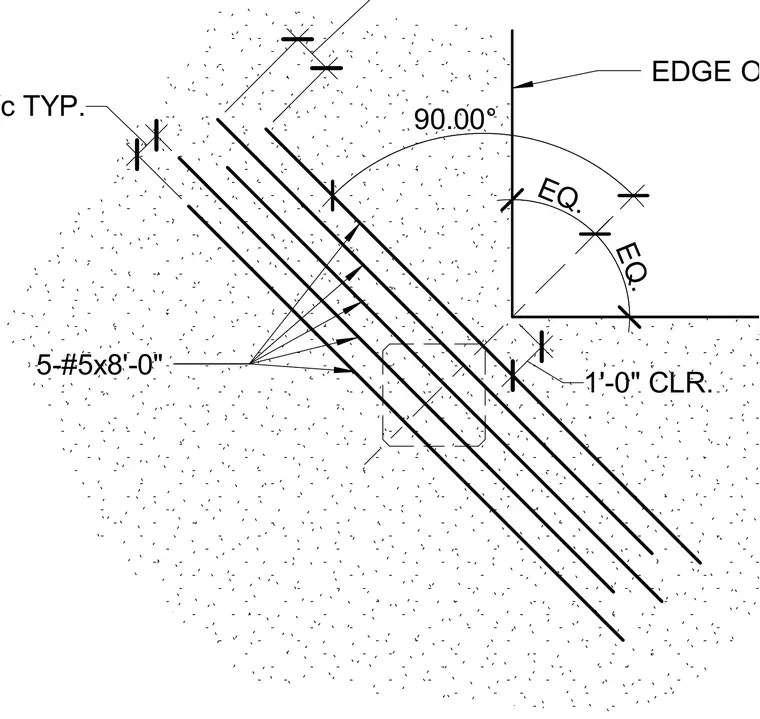

Five number five reinforcing bars at eight inches on center are placed diagonally across the re-entrant or exterior slab corner to control cracking. The bars measure eight feet in length and maintain a one-foot clearance from the ninety-degree edge of slab. Spacing is set equally along the perpendicular edges meeting at the corner.
EDGE OF SLAB 5-#5x8'-0" EQ. EQ. 8" o/c TYP. 1'-0" CLR. 90.00°
