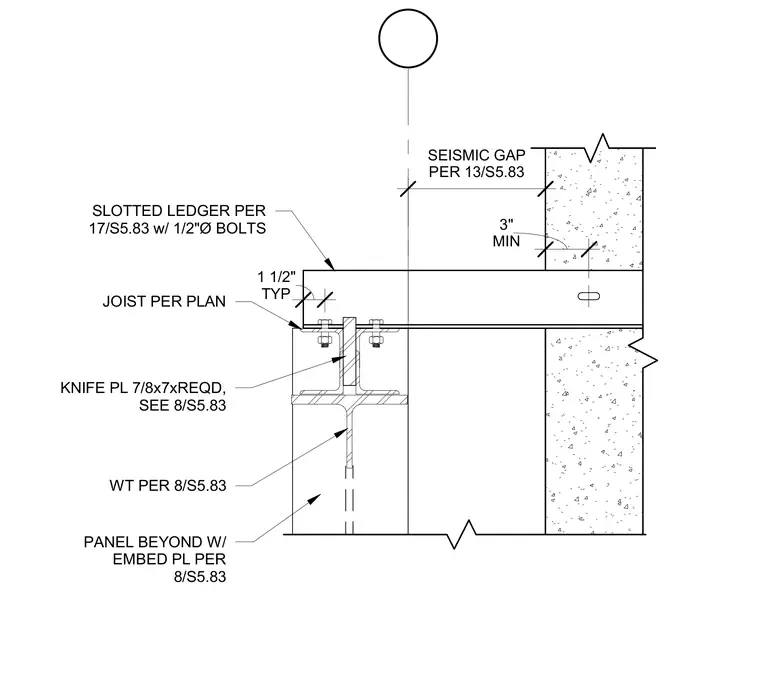

A structural steel ledger connection bridges a minimum 3-inch seismic gap adjacent to a concrete panel with an embed plate. A slotted ledger measuring 1 1/2 inches connects with one-half inch diameter bolts to a joist supported on a WT shape. A knife plate measuring seven-eighths by seven inches is bolted to the framing assembly.
TYP 1 1/2" SLOTTED LEDGER PER 17/S5.83 w/ 1/2"Ø BOLTS JOIST PER PLAN KNIFE PL 7/8x7xREQD, SEE 8/S5.83 WT PER 8/S5.83 MIN 3" SEISMIC GAP PER 13/S5.83 PANEL BEYOND W/ EMBED PL PER 8/S5.83
