Structural · S-YJXG8

Typical Bar Hooks and Bends

Materials

Concrete

Elements

Reinforcing

Connections

Rebar Splice / Development

About this detail

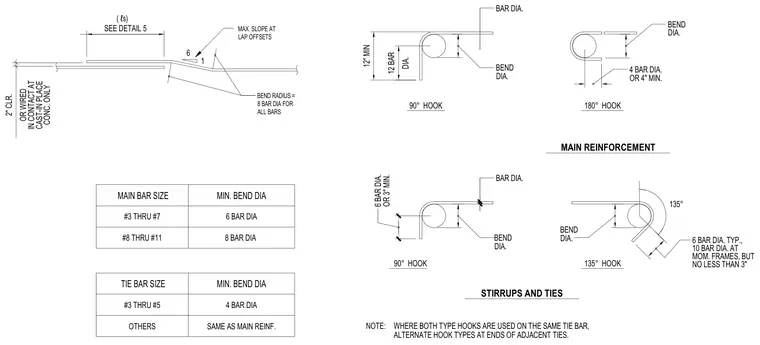

Reinforcing bar details illustrate standard bend diameters and hook configurations for main reinforcement, stirrups, and ties in cast-in-place concrete. Main bar sizes ranging from #3 through #11 require minimum bend diameters of six to eight bar diameters. Stirrups and ties feature 90-degree, 135-degree, and 180-degree hooks with specific bend radii and extension lengths. Lap offsets maintain a maximum slope of one to six with lap lengths referenced per detail five. Concrete cover is maintained at two inches minimum for cast-in-place concrete only.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
