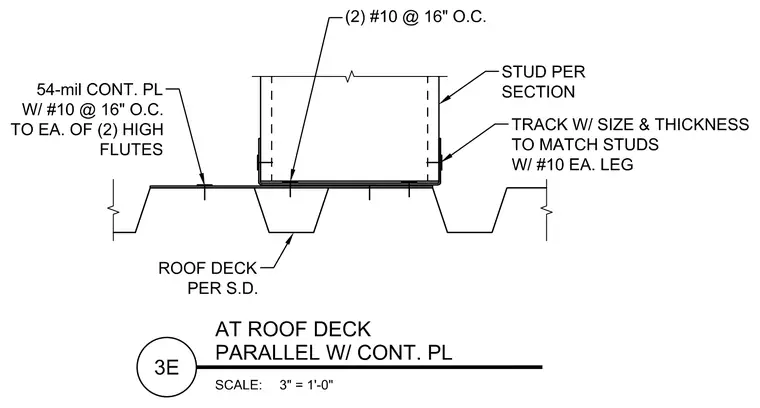

Cold-formed steel studs bear on a track sized to match the studs and fastened with two number 10 screws at sixteen inches on center through the track web into the roof deck. A continuous fifty-four mil plate is fastened with number 10 screws at sixteen inches on center to each of two high flutes of the roof deck. The track legs are secured with number 10 screws on each leg.
