Structural · S-YJK9C

Channel End Connection

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Walls Curtain Walls Facades / Cladding Roofs Decks Arches Bracing Connections / Plates

Connections

Bracing Connection

About this detail

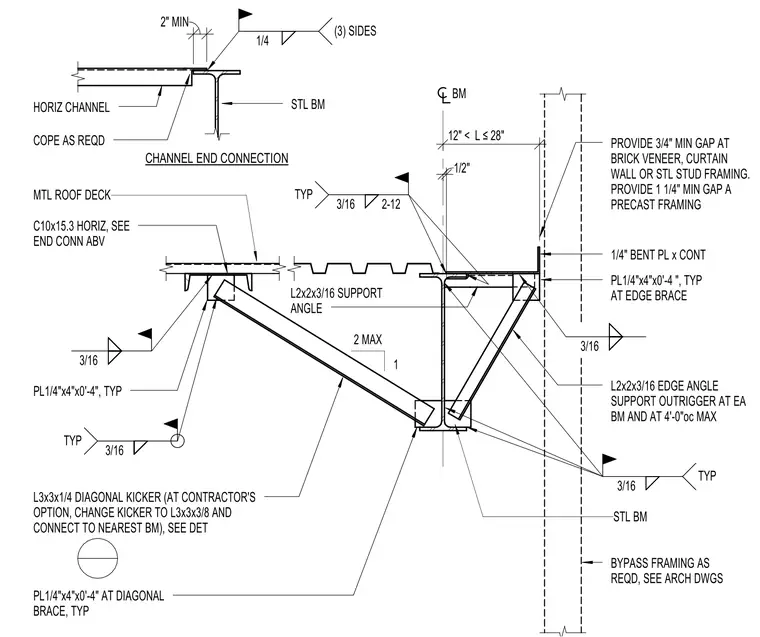

A C10x15.3 horizontal channel connects to a steel beam with a coped end and three-sided fillet welds. An L3x3x1/4 diagonal kicker brace ties into the assembly via typical 1/4-inch plates, with an optional upgrade to an L3x3x3/8 angle connected to the nearest beam. An L2x2x3/16 support angle carries the metal roof deck, while a continuous 1/4-inch bent plate frames the edge. Minimum gaps of 3/4 inch are provided at brick veneer, curtain walls, or steel stud framing, and 1-1/4 inches at precast framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
